TOA EV-700R Digital Announcer

TOA EV-700R Digital Announcer

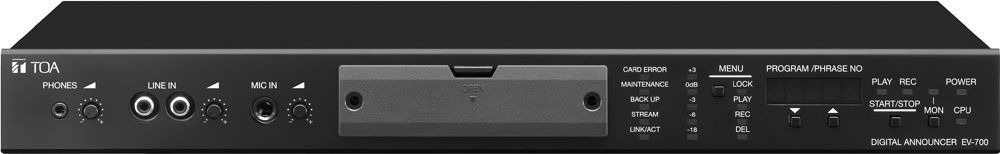

The EV-700 is a digital announcing machine capable of recording/playback. It is ideal for periodicalattention calling and guide broadcasts uses in commercial and public facilities. Using the Setting Software makes it easy to perform sound source rewriting settings and controls. Preset sound sources like chime sound and Westminster chime are stored on the supplied memory card. The EV-700 can be mounted in an EIA-Standard equipment rack with the optional rack mounting bracket (1U size)

0.00 ₱ 0.00 ₱

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Product Specification


Power Source Supplied from an external 24 V DC (21.6 − 26.4 V)/400 mA power supply, Removable terminal block (2 pins) or from an optional AD-246 AC adapter
Power Consumption 10 W
Wave Format 44.1 kHz/32 kHz sampling rate, 16 bits PCM, WAV file (monaural)
Sound Source Rewriting Method LAN data transfer/Analog recording/ Direct write to memory card using the setting software
Audio Input MIC: −55 dB*1 (microphone input volume control in maximum position), 600 Ω, unbalanced, ø6.3 phone jack (2P), LINE(rear): −20 dB*1 (line input volume control in maximum position), 10 kΩ, unbalanced, Removable terminal block (12 pins), LINE(front): −29 dB*1 (line input volume control in maximum position), 10 kΩ, unbalanced, RCA pin jack
Audio Output LINE 1, 2: 0 dB*1, 600 Ω, unbalanced, Removable terminal block (12 pins), Headphones: 0 dB*1, 100 Ω, monaural, ø3.5 mini jack (3P)
Frequency Response 20 Hz − 20 kHz ±3 dB (1 kHz), 50 Hz − 14 kHz ±3 dB (IT-450 mounted, 1 kHz)
Distortion 0.3 % or less (1 kHz, rated output)
Storage Media Compatible with CompactFlash™ specification Memory card
Number of Mountable Memory cards 2 (1 Memory card containing preset sound sources is supplied.), Backup operation available when 2 cards are mounted.
Number of Recordable Phrases 32768
Maximum Recording Time About 3 hours (at 44.1 kHz sampling rate) or about 4 hours (at 32 kHz sampling rate)
Audio Output Method Single channel monaural
Number of Playback Program Direct mode: 16 programs, Binary mode: 256 programs, 1 emergency message takes precedence over the above programs and is played back, R.E.M. (Recording Endless Message) playback *2 can be performed.
Control Input Activations 1 − 16, playback, pause, recording, erasure/clear, emergency playback, emergency recording, emergency pause, No-voltage make contact input, pulse make length: 50 ms or more, open voltage: 30 V DC, short-circuit current: 10 mA, Removable terminal block (16 pins)
Control Output Shorting outputs 1 − 8 (busy), Error: contact capacity: 30 V DC, 0.5 A, Removable terminal block (8 pins)
Network I/F 100BASE-TX
Network protocol TCP/IP, UDP, HTTP, FTP
Connector RJ45 connector
Operating Display 7-segment LED, 5 digits
Operating Temperature 0 °C to 40 °C (32 °F to 122 °F)
Operating Humidity 0 %RH or less (no condensation)
Finish Panel: Aluminum, black, 30 % gloss, paint, Case: Pre-coated steel plate, black, 30 % gloss
Dimensions 420 (W) x 44 (H) x 222 (D) mm (16.54" x 1.73" x 8.74")
Weight 2.4 kg (5.29 lbs.)
Accessory Memory card (Containing prerecorded audio files) x 1, Rubber foot x 4, Removable terminal plug (2 pins) x 1, Removable terminal plug (8 pins) x 2, Removable terminal plug (16 pins) x 2, Removable terminal plug (12 pins) x 2, Front cover fixing screw x 2, CD (setting software) x 1
Option AC adapter: AD-246, Rack mounting bracket: MB-15B
