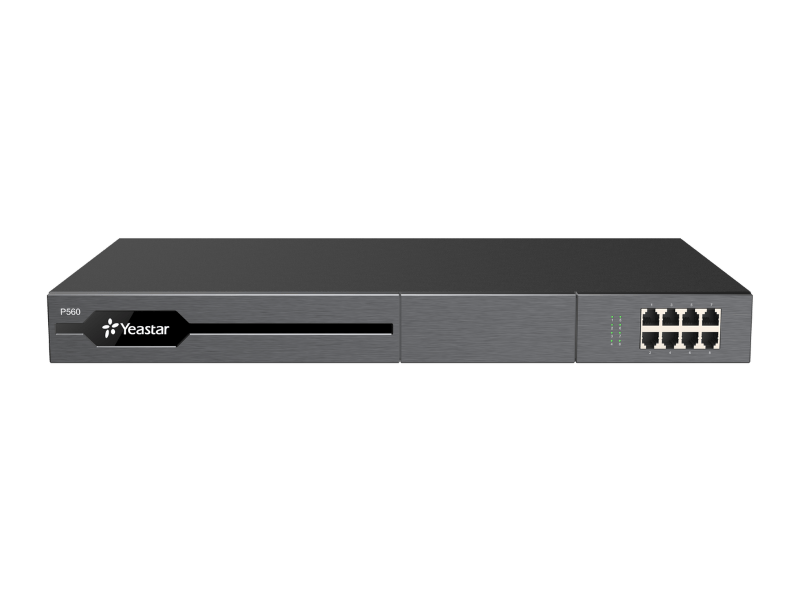

Yeastar P560 P‑Series Appliance IP PBX

• Supports 100 / 200 users
• Up to 30 / 60 concurrent calls

Telephony ports:

• 8 FXS (analog extension)
• 8 FXO / BRI
• 4 GSM / 3G / 4G
• 1 E1 / T1 / J1 port

• Modular design: supports 1 D30 DSP module for expanded call capacity
• Transport protocols: UDP, TCP, TLS, SRTP
• Voice codecs: G.711, G.722, G.726, G.729A, GSM, Speex, ADPCM, iLBC
• Video codecs: H.263, H.263P, H.264, MPEG-4
• DTMF support: In-band, RFC 2833, RFC 4733, SIP INFO
• NFC read/write for easy config
• Network: 2 × Gigabit Ethernet (10/100/1000 Mbps)
• Storage: 1 SATA drive (up to 2 TB) + 1 USB port (up to 2 TB)
• Power: AC 100–240V, 1.5A max
• Form factor: 1U rack-mount
• Operating temp: 0 °C to 40 °C; Storage: –20 °C to 65 °C

Key features:

• Hot-standby (redundancy) for high resiliency
• Auto-provisioning for IP phones
• CRM (e.g., Salesforce, HubSpot) & Microsoft Teams integration
• Built-in UC: Linkus (mobile, desktop, web), team chat, video
• Strong security: 2FA, auto defense, IP blocklist
