Wireless Digital Display Bridge CPE

https://www.techcore.com.ph/web/image/product.template/217/image_1920?unique=0b0a856

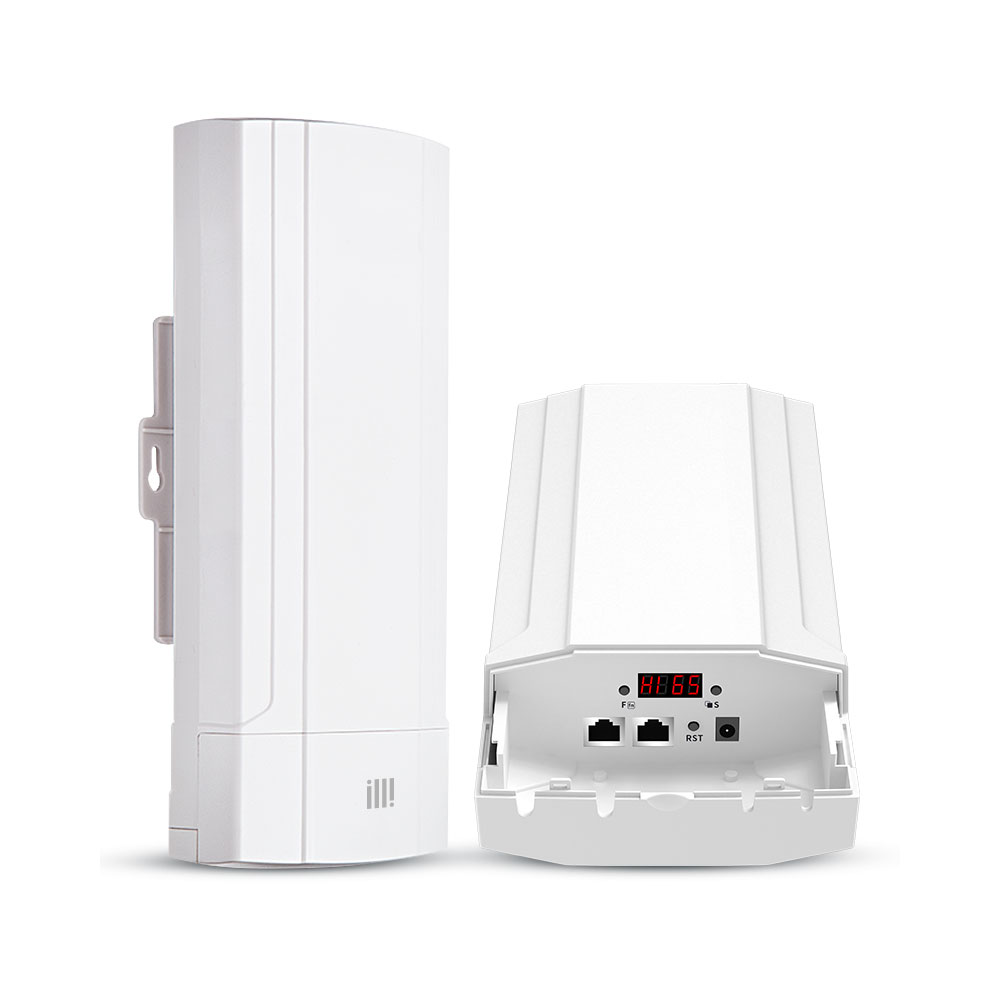

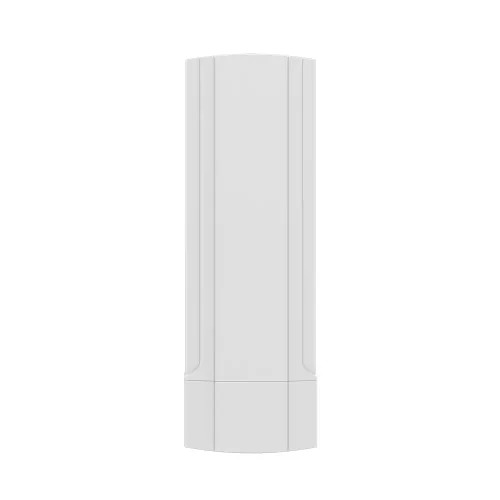

The KD-G520N is a high-performance enterprise-level outdoor bridge product that supports 5G full frequency band and 802.11A/N/AN/AC technology. Unique digital tube pairing technology, without computer configuration, can easily complete the pairing of point-to-point, point-to-multipoint (within 8 points) devices. Gigabit network interface, 5G 802.11AN MIMO technology wireless processing speed up to 900Mbps. The power supply mode is flexible, supporting 24V POE network cable power supply and 12V 1A DC local power supply, and the network cable power supply distance can reach 80 meters (related to the network cable material).

This combination does not exist.

Contact Us
Wireless Antenna



Product Specification


Physical Specification:


Chipset MTK7620DA + 7612E
Flash 8MB (Max Support 16MB)
Memory 64MB DDR RAM (Max Support 128MB DDR RAM)
Network 1*100/1000 Mbps RJ45 + 1*10/100 Mbps self-adaptive RJ45
Button 1*RST Key，1*Digital Key
Short press the digital tube display value plus one,
Long press for 15 seconds to restore factory settings
Enclosure Weatherproof Plastic

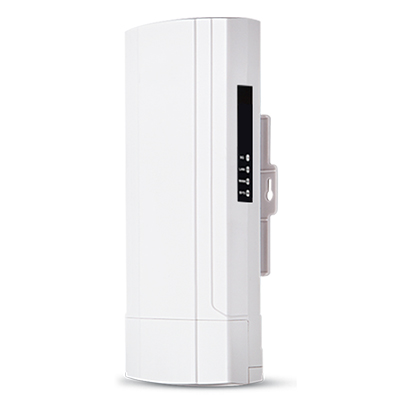

LED Power: On/Off
SIG Signal: 1,2,3
ETH: On/Off/Flashing
Power Passive POE Power 24V, 1A; DC 12V, 1A, Power Consumption < 10W
Working Temp: -30℃～+55℃
Storage Temp: -40℃～+70℃
Working Humidity: 10％～90％, Storage Humidity: 5％～95％;
Waterproof IP65 Grade
Bridge CPE Point: (output power indicator) Below 25% (SIG1 is always on),
25%~50% (SIG1-SIG2 is always on),
50%~75% (SIG1-SIG3 is always on),
75%~100% (SIG1-SIG4 are always on).
Bridge end-user: (Connection signal strength indicator) When the connection fails, the running water light will be displayed,

When the connection is successful:
0~-65dBm (SIG1-SIG4 always on),
-66~-75dBm (SIG1-SIG3 always on),
-76~-85dBm (SIG1-SIG2 always on),
signal strength below -86dBm (SIG1 always on)

Physical Specification:


Wireless Tech 5.8G: 900Mbps 802.11 a/n/an/ac MIMO
Frequency 5.150~5.825GHz
Speed 802.11ac: 6.5Mbps-867Mbps, 802.11n: 6.5Mbps and 300Mbps
Antenna Gain 14dBi dual-polarized directional antenna
Tx Power 11a @54M:25±2DB, @6M:27±2DB, 11n @MCS7:23±2DB, @MCS0:25±2DB
Rx Sensitivity 11a: 72dbm@54Mbps, -90dbm@6Mbps, 11n: -70dbm@MCS7, -90dbm@MCS0
Wireless Security WPA/WPA2;WPA-PSK/WPA2-PSK(AES/TKIP)
5G Channel 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 182, 186, 190, 194


EVM 5Ghz Symbol Parameter Rx (dBm) 5Ghz
802.11 Srf (OFDM) 1Rx chain 6Mbps -88
54Mbps -72
802.11ac 802.11ac
VHT20 		1
Stream(1x1)		 MCS0 -84
MCS7 -67.5
MCS8 -64
2
Stream(2x2)		 MCS0 -83
MCS7 -66.5
MCS8 -63
802.11
ac VHT40 		1
Stream(1x1)		 MCS0 -82
MCS7 -65.5
MCS9 -58.5
2
Stream(2x2)		 MCS0 -81
MCS7 -64.5
MCS9 -57.5
802.11
ac VHT80		 1
Stream(1x1)		 MCS0 -79
MCS7 -62
MCS9 -55.5
2
Stream(2x2)		 MCS0 -78
MCS7 -61
MCS9 -54.5
