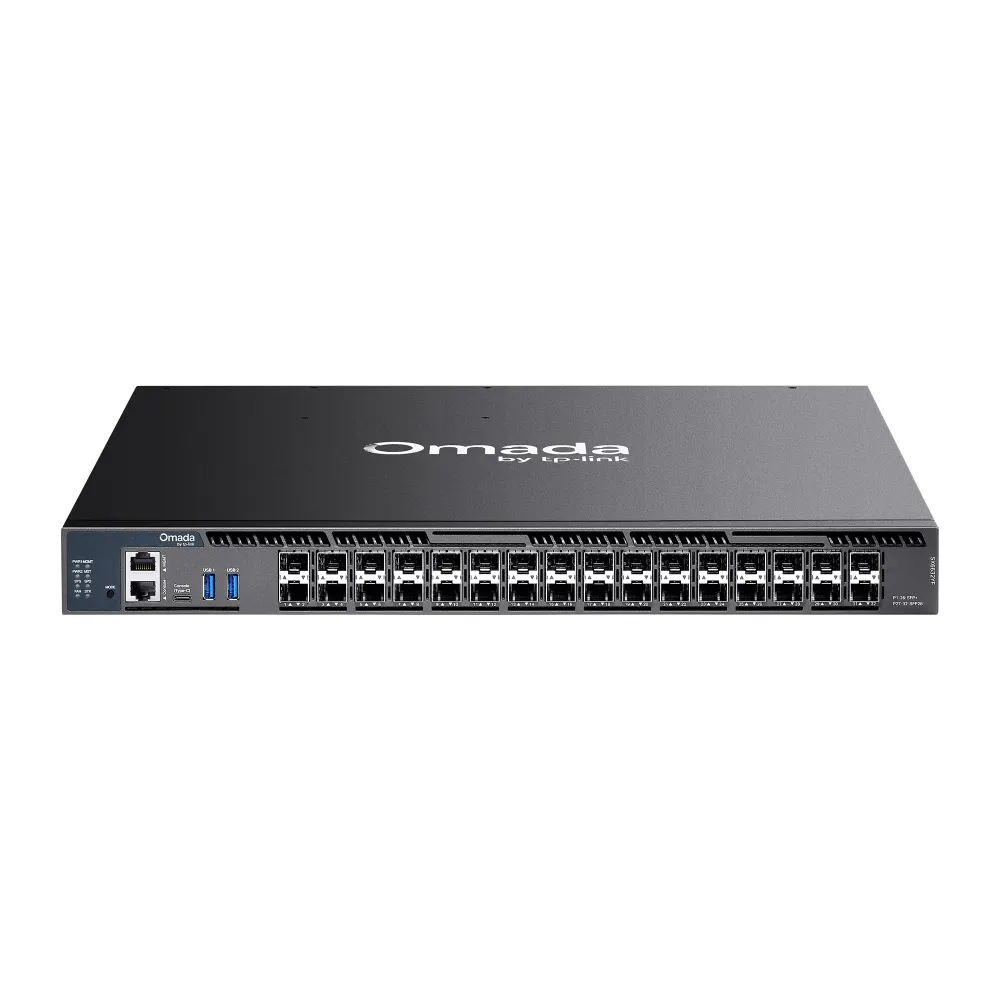

TP-Link Omada SX6632YF 26-Port 10G Stackable L3 Switch

TP-Link Omada SX6632YF 26-Port 10G Stackable L3 Switch

- TP-Link Omada SX6632YF — 26-port 10G SFP+ stackable L3 managed aggregation switch with 6× 25G SFP28 slots
- 820 Gbps switching capacity; 610.1 Mpps packet forwarding rate; 410 Gbps forwarding bandwidth
- 26× 1/10Gbps SFP+ slots + 6× 1/10/25Gbps SFP28 slots
- Physical stacking — up to 300 Gbps stacking bandwidth (6 stacking ports), up to 8 units (standalone) / 4 units (Omada controller mode)
- Abundant L3 capabilities: Static Routing (2048 IPv4), RIP/RIPng, OSPF v2/v3, ECMP (256 entries), VRRP (64 groups), Policy-based Routing (PBR), DHCP Server/Relay
- ERPS — rapid protection and recovery in ring topology (up to 64 rings)
- 128K MAC address table; 8 MB packet buffer; 9 KB jumbo frame
- Quad-core ARM @ 1.2 GHz CPU; 8 GB DDR4; 2× USB 3.0; RJ45 + USB Type-C console; dedicated management port
- Highly available: max 2 hot-swappable PSU modules (N+1 redundant, 1× PSM550-AC included), 4 hot-swappable fans (N+1 redundant)
- Full L2+ features: 802.1Q VLAN (4K), STP/RSTP/MSTP, link aggregation (120 LAG groups), loopback detection, IGMP/MLD snooping, PIM-DM/SM multicast routing
- Security: 802.1X (port/MAC auth, MAB, guest VLAN), AAA/TACACS+, ARP inspection, DoS defend, IP-MAC-port binding, IPv6 source guard, storm control
- ISP features: 802.3ah OAM, DDM (SFP diagnostics), sFlow, QinQ, L2PT, PPPoE ID insertion
- Omada SDN — centralized cloud management, batch config/firmware, intelligent monitoring, reboot schedule
- Standalone management: web GUI, CLI, SNMP v1/v2c/v3, RMON, dual image & dual config
- 440 × 380 × 44 mm rackmount; -5 °C to 50 °C; CE, FCC, RoHS

TP-Link Omada SX6632YF 26-Port 10G Stackable L3 Switch

6x 25G SFP28, 820 Gbps, core switch
