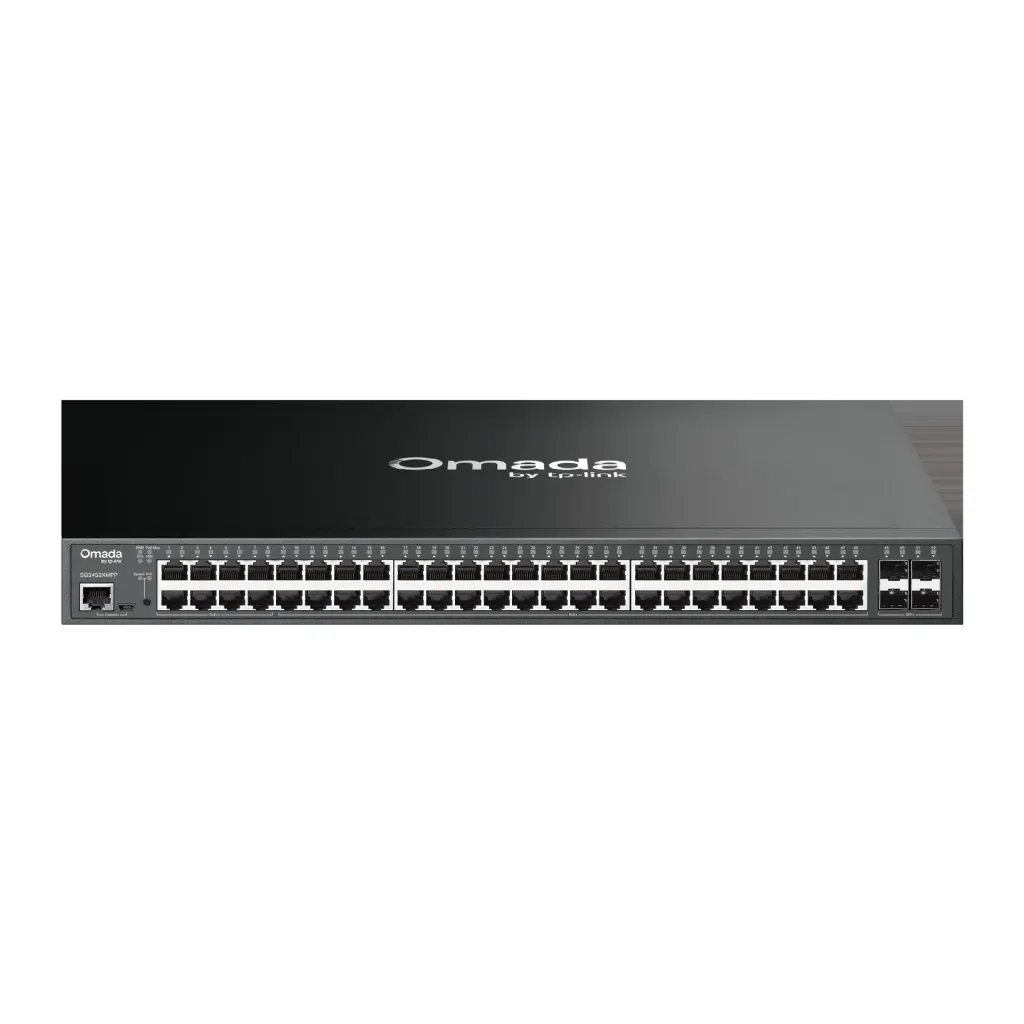

TP-Link Omada SG3452XMPP 48-Port Gigabit + 4x10G PoE++ Switch

TP-Link Omada SG3452XMPP 48-Port Gigabit + 4x10G PoE++ Switch

- TP-Link Omada SG3452XMPP — 48-port Gigabit + 4-port 10GE SFP+ L2+ managed switch with 40-Port PoE+ & 8-Port PoE++
- 4× 10 Gbps SFP+ slots for high-speed uplinks
- 8× Gigabit 802.3af/at/bt PoE++ ports (max 90 W per port) — powers PTZ cameras, Wi-Fi 6 APs, video phones
- 40× Gigabit 802.3af/at PoE+ ports (max 30 W per port)
- 750 W total PoE budget; supports Fast PoE and Perpetual PoE
- 176 Gbps switching capacity; 130.94 Mpps packet forwarding rate; 16K MAC address table
- 128 IPv4/IPv6 interfaces; 48 static routes; DHCP server/relay (interface/VLAN/L2)
- ERPS — rapid protection and recovery in ring topology
- Full L2: 802.1Q VLAN (4K), STP/RSTP/MSTP, link aggregation (LACP, 8 groups), loopback detection, port mirroring
- IGMP v1/v2/v3 + MLD snooping (1000 groups), MVR, multicast filtering
- Enterprise security: 802.1X (port/MAC, MAB, guest VLAN), AAA incl. TACACS+, IP-MAC-Port Binding (512), DHCP snooping, DAI, IPv4/IPv6 source guard, DoS defend, port security (64 MACs), storm control, port isolation
- QoS: 8 priority queues, SP/WRR/SP+WRR, 802.1p/DSCP, bandwidth control, voice VLAN
- ACL: MAC/IP/combined/IPv6 ACL, time-based ACL
- ISP features: 802.3ah OAM, DDM (SFP diagnostics), sFlow, L2PT, PPPoE ID insertion, DLDP
- Omada SDN — centralized cloud management, ZTP (zero-touch provisioning), batch config/firmware, intelligent monitoring, reboot schedule
- Management: web GUI, CLI, SNMP v1/v2c/v3, RMON; HTTPS + SSHv1/v2 security
- Durable metal casing, rackmountable; 3 fans (fanless mode at 0W PoE)
- 440 × 330 × 44 mm; 5.75 kg; -5 °C to 45 °C; CE, FCC, RoHS

TP-Link Omada SG3452XMPP 48-Port Gigabit + 4x10G PoE++ Switch

40x PoE+ + 8x PoE++ (750W), 4x 10G SFP+
