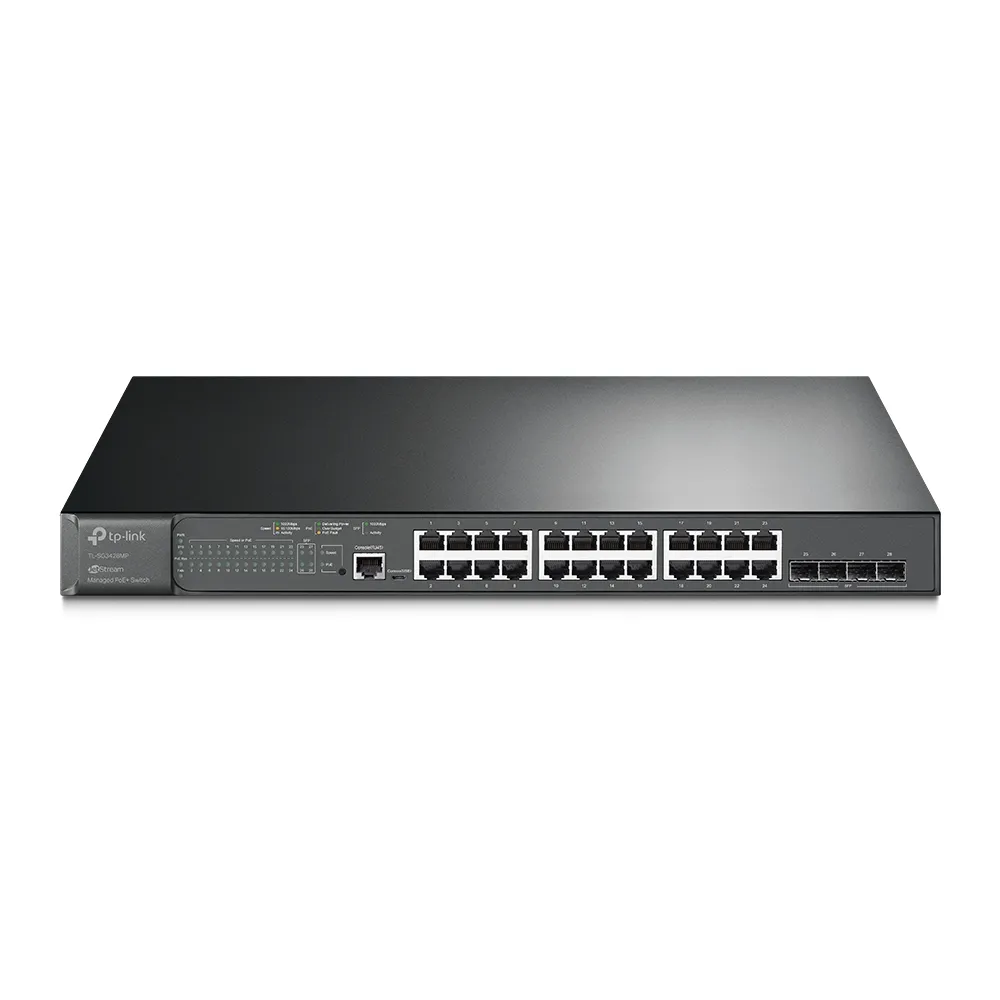

TP-Link Omada SG3428MP 28-Port Gigabit L2+ Managed PoE+ Switch

TP-Link Omada SG3428MP 28-Port Gigabit L2+ Managed PoE+ Switch

- TP-Link Omada SG3428MP — 28-port Gigabit L2+ managed switch with 24-port PoE+ (V6.20)
- 24× 10/100/1000Mbps PoE+ RJ45 ports (802.3af/at, up to 30 W per port) + 4× Gigabit SFP slots
- 384 W total PoE power budget — powers IP cameras, Wi-Fi APs, VoIP phones
- 56 Gbps switching capacity; 41.66 Mpps packet forwarding rate; 16K MAC address table
- L2+ features: static routing (48 routes), DHCP server/relay (interface/VLAN/L2 relay)
- Full L2: 802.1Q VLAN, STP/RSTP/MSTP, link aggregation (LACP, 8 groups × 8 ports), loopback detection, port mirroring
- IGMP v1/v2/v3 + MLD snooping, MVR, IGMP authentication; multicast to appropriate subscribers
- Enterprise security: 802.1X (port/MAC auth, MAB, guest VLAN), AAA incl. TACACS+, IP-MAC-Port Binding (512), DHCP snooping, ARP inspection, IPv4/IPv6 source guard, DoS defend, storm control, port isolation
- QoS: 8 priority queues, SP/WRR/SP+WRR, 802.1p/DSCP, bandwidth control, voice VLAN
- ACL: MAC/IP/combined/IPv6 ACL, time-based, mirror/redirect/rate-limit/QoS policies
- ISP features: 802.3ah OAM, DDM (SFP diagnostics), sFlow, L2PT, PPPoE ID insertion, ERPS, DLDP
- Omada SDN — centralized cloud management, ZTP (zero-touch provisioning), batch firmware upgrade, intelligent monitoring, reboot schedule
- Management: web GUI, CLI (console/telnet), SNMP v1/v2c/v3, RMON, dual image & dual config
- 2 fans; 480.1 W max (with 384 W PD); 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
- Operating: 0 °C to 45 °C; CE, FCC, RoHS

TP-Link Omada SG3428MP 28-Port Gigabit L2+ Managed PoE+ Switch

24x PoE+ (384W), 4x SFP, access layer
