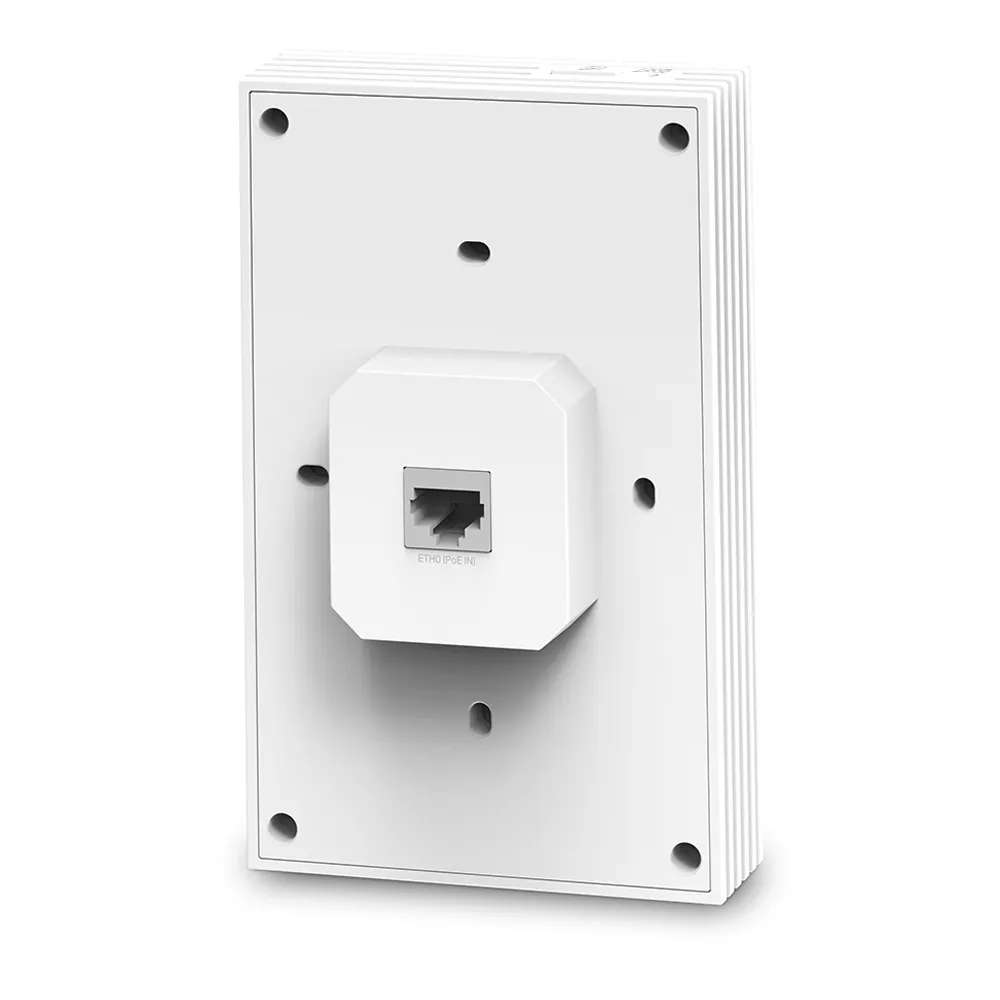

TP-Link Omada EAP655-Wall AX3000 Wall Plate WiFi 6 AP

TP-Link Omada EAP655-Wall AX3000 Wall Plate WiFi 6 AP

- TP-Link Omada EAP655-Wall — AX3000 wall plate WiFi 6 access point
- Blazing-fast AX3000 speeds: simultaneous 574 Mbps on 2.4 GHz + 2402 Mbps on 5 GHz = 2976 Mbps total
- Higher network efficiency — delivers data to more devices at the same time with less lag (OFDMA, MU-MIMO)
- Complete in-room WiFi coverage — guaranteed strong signals, corner-to-corner coverage
- 1× gigabit uplink port + 3× gigabit downlink ports (one supports PoE out; requires 802.3at PoE+ input)
- Powered by 802.3af/at PoE — no separate power adapter needed
- Easy installation: compatible with 86 mm, EU & US standard junction boxes (mounting kits included)
- IEEE 802.11ax/ac/n/g/b/a; 2.4 GHz + 5 GHz dual band
- Up to 16 SSIDs (8 per band); WPA/WPA2/WPA3 Personal & Enterprise
- Secure guest network — captive portal with SMS/Facebook WiFi/Voucher authentication
- Seamless roaming, band steering, beamforming, airtime fairness, load balance, rate limit
- Rogue AP detection; wireless isolation; MAC address filtering; access control
- Omada SDN — centralized cloud management (OC300/OC200, software or cloud controller), ZTP, multi-site management
- Management: Omada app, web HTTP/HTTPS, SSH, SNMP v1/v2c/v3, syslog; management VLAN
- Coverage: 50 m² (600 ft²); 100+ concurrent wireless clients
- Dimensions: 143 × 86 × 42.6 mm; power consumption 12 W (802.3at, PoE out off)
- FCC, RoHS; operating 0-40 °C

TP-Link Omada EAP655-Wall AX3000 Wall Plate WiFi 6 AP

3x GbE + PoE out, in-room coverage
