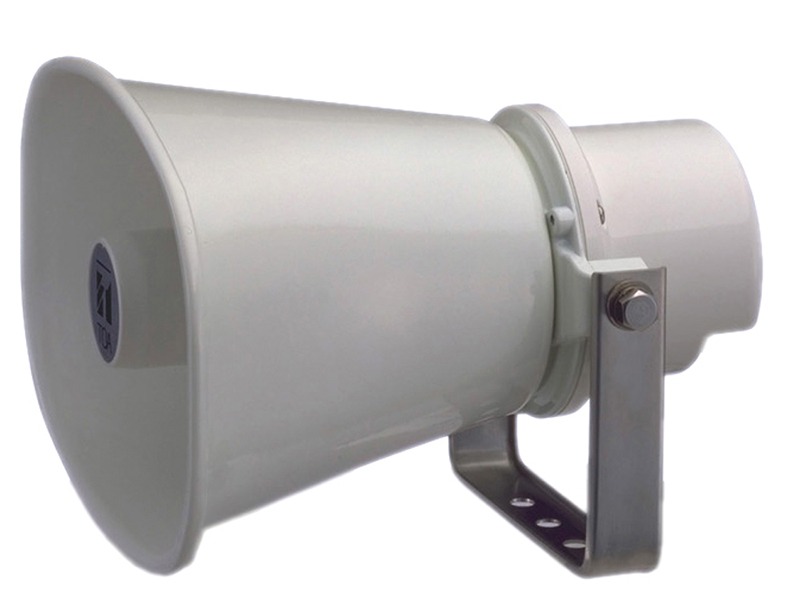

TOA SC-615M Paging Horn Speaker

TOA SC-615M Paging Horn Speaker

The SC-615M is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability.

0.00 ₱ 0.00 ₱

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Product Specification


Rated Input 15 W
Line Voltage 100 V line or 70 V line
Rated Impedance 100 V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W)
Sound Pressure Level 112 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level)
Frequency Response 280 Hz - 12.5 kHz
Dust/Water Protection IP65
Polarity Hot: Black, Com: White
Operating Temperature -20 ℃ to +55 ℃ (must be free from dew condensation)
Horn flare Aluminum, off-white, powder coating
Reflector horn and rear cover ABS resin, off-white
Bracket, Screws and bolts Stainless steel
Speaker cable Polyvinyl chloride insulated cabtyre cable (6 mm in diameter, 600 mm in length)
Dimensions 222 (W) × 179 (H) × 234 (D) mm
Weight 1.3 kg
Option Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)
