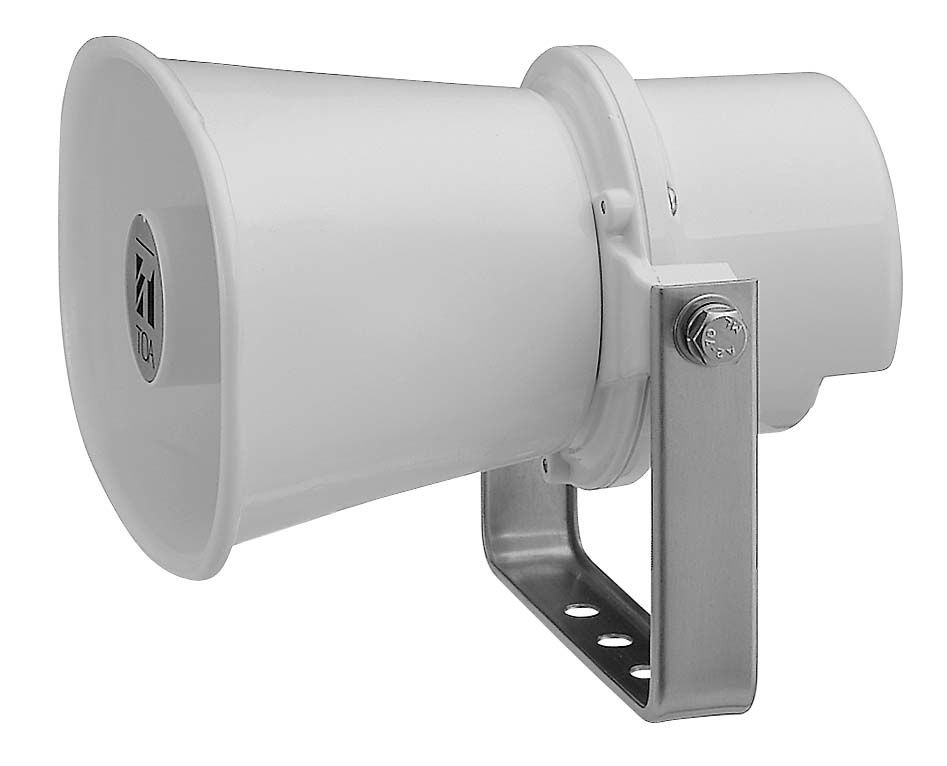

TOA SC-610M Horn Speaker

https://www.techcore.com.ph/web/image/product.template/395/image_1920?unique=daa5a61

The SC-610M is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability.

• Very rugged speaker with durable construction ensures long term reliable operation
• High quality sound
• High SPL
• Easy impedance selection through switch
• High impedance 100 V line
• Shock resistant oval horn

This combination does not exist.

Contact Us



Product Specification


Rated Input 10 W
Line Voltage 100 V line or 70 V line
Rated Impedance 100 V line: 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W), 70 V line: 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sound Pressure Level 110 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level)
Frequency Response 315 Hz - 12.5 kHz
Dust/Water Protection IP65
Polarity Hot: Black, Com: White
Operating Temperature -20 ℃ to +55 ℃ (must be free from dew condensation)
Finish Horn flare: Aluminum, off-white, powder coating / Reflector horn and rear cover: ABS resin, off-white / Bracket, screws and bolts: Stainless steel / Speaker cable: Polyvinyl chloride insulated cabtyre cable / (6 mm in diameter, 600 mm in length)
Dimensions 172 (W) × 161 (H) × 188 (D) mm
Weight 1.2 kg
Option Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)
