TOA PC658R Ceiling Speaker

TOA PC658R Ceiling Speaker

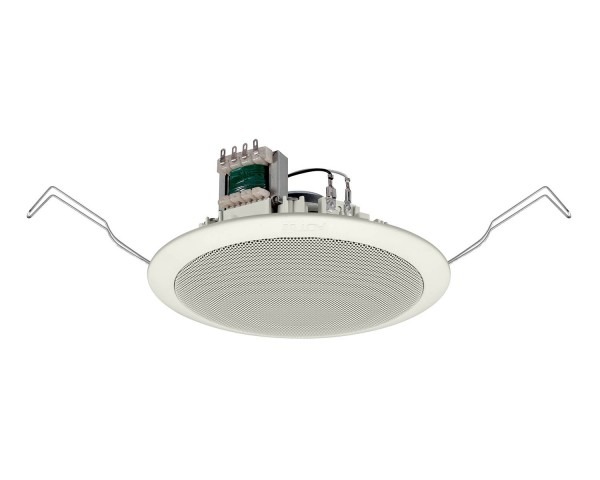

The PC-658R is a ceiling mount speaker with a resin panel and speaker frame. It features a spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by adjusting the tap position of the transformer.

• Special design for thin ceiling
• Spring clamp mechanism for easy speaker mounting to the ceiling

0.00 ₱ 0.00 ₱

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Product Specification


Rated Input 6 W (100 V line), 3 W (70 V line)
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W), 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sensitivity 90 dB (1 W, 1 m) (500 Hz – 5 kHz, pink noise)
Frequency Response 65 Hz – 18 kHz (peak -20 dB)
Speaker Component 16 cm (6″) cone-type
Dimensions for Fixing Hole Mounting hole: φ170±5 mm (φ6.69″±0.2″), Ceiling thickness: 5 – 25 mm (0.2″ – 0.98″)
Speaker Mounting Method Spring clamp
Finish Baffle: Polypropylene resin, white (RAL 9016 equivalent), Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint
Dimensions φ192 × 73 (D) mm (φ7.56″ × 2.87″)
Weight 500 g (1.1 lb)
Accessory Paper pattern …1
