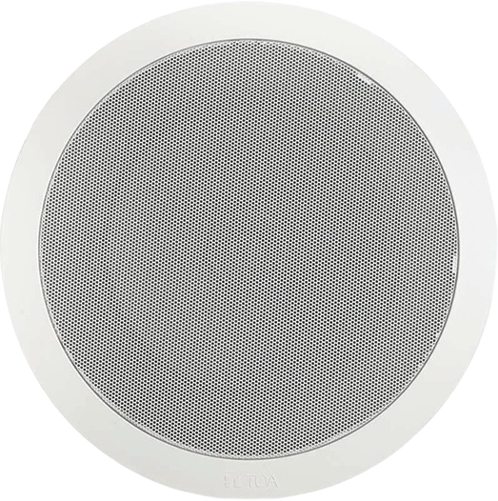

TOA PC-668R Ceiling Mount Speaker

https://www.techcore.com.ph/web/image/product.template/370/image_1920?unique=0860f4d

The PC-668R is a Ceiling Mount Speaker with integrated resin panel and speaker frame. It feature spring clamp mechanism for easy speaker mounting to ceiling. The slim speaker frame design allows it to blend into the interior design of the application easily. Input impedance can be easily adjusted by changing the tap of the transformer.

This combination does not exist.

Contact Us



Product Specification


Rated Input 15 W (100 V, 70 V line)
Impedance Option 100 V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3kΩ (3 W) , 70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W)
Sensitivity 96 dB (Pink Noise 500 Hz - 5,000 Hz / 1W, 1m)
Frequency Response 65 Hz - 20,000 Hz (at 20 dB below peak SPL)
Speaker Component 20 cm (8") double cone-type
Dimensions for Fixing Hole Mounting hole: Φ250±5 mm (Φ9.84"±0.2"), Ceiling thickness: 5 - 25 mm (0.20" - 1.98")
Speaker Mounting Method Spring clamp
Panel Polypropylene resin, traffic white (RAL 9016 equivalent)
Grille Surface-treated steel plate net, traffic white (RAL 9016 equivalent), paint
Dimensions Φ280 × 90 (D) mm (11.02" × 3.54")
Weight 0.96 kg (2.12 lb)
Accessory Paper pattern …1
