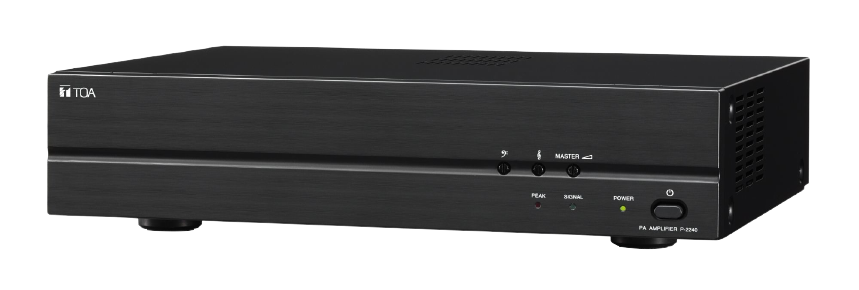

TOA P-2240 Power Amplifier

https://www.techcore.com.ph/web/image/product.template/373/image_1920?unique=17ea8ee

The P-2240 is power amplifier featuring high performance-to-cost suit for paging applications in schools, churches, offices and retail stores.

• 240 W output power
• 100 V line input allows connection to speaker output of A-2000 series amplifiers
• Remote power control allows operation independently from A-2000 series amplifiers
• Emergency bypass of master volume
• 2U high

This combination does not exist.

Contact Us



Product Specification


Power source 220 - 240 V AC, 50 / 60 Hz or 24 VDC
Rated output 240 W
Frequency response 50 Hz - 20 kHz
Distortion < 1 % (at 1 kHz, 1/3 rated output power)
Power / current consumption 520 W (at rated output), 238 W (EN 62368-1)
Current consumption (value) 15 A
S/N ratio 60 dB(A)
Inputs Line-in 0 dBV, 10 kΩ, balanced, screw terminal, 100 V line in: 40 dBV, 330 kΩ, unbalanced, screw terminal, Power remote control: Make contact
Outputs Loop out: 0 dBV, 10 kΩ, balanced, screw terminal, Speaker out: Balanced (floating), High impedance: 42 Ω (100 V), 21 Ω (70 V), Low impedance: 4 Ω (31 V)
Number of channels 1
Indicator Power, signal, peak
Current consumption 15 A
Dimensions 420 x 100.9 x 351.3 mm (W x H x D)
Finish ABS resin, Steel plate, black



Download Center


Datasheet


User Manual
