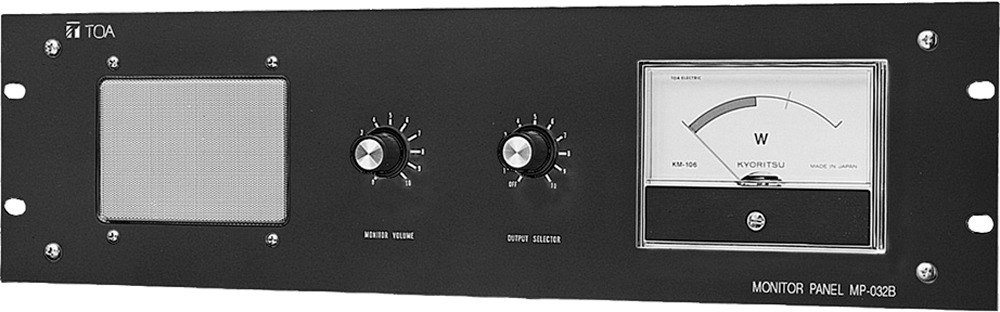

TOA MP-032B Monitor panel

TOA MP-032B Monitor panel

The MP-032B is a monitor panel that is designed to provide aural and visual monitoring for multi-channel sound and program system.

• Passive monitor panel for speaker line level
• Monitors up to 10 separate channels or 10 amplifiers
• Large easy-to-read watt meter for adjusting output level
• Additional audio monitoring with built-in 5“ full range speaker

0.00 ₱ 0.00 ₱

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Product Specification


Functions Aural/visual monitoring (up to 10 power amplifiers)
Controls Channel selector switch, Monitor volume control, Watt meter, Line voltage selector switch
Speaker Full-range 12 cm speaker
Input Lines 25 V (625 Ω), 50 V (2.5 kΩ), 70 V (5 kΩ), 100 V (10 kΩ) switchable
Terminals M4 screw terminals, distance between barriers: 8.8 mm
Finish Surface-treated steel plate, black
Dimensions 483 (W) × 133 (H) × 87 (D) mm
Weight 2.2 kg
Accessory Rack mounting screw (with washer) ……… 4
