TOA EC-380-AS Chime Microphone

TOA EC-380-AS Chime Microphone

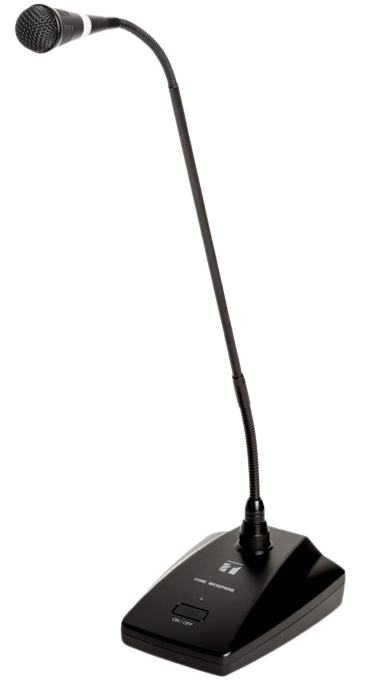

The EC-380 is an uniquely shaped and high-quality condenser microphone equipped with a electrical chime and designed for paging applications. With its' adjustable chime volume, flexible power option of battery or DC, EC-380 is definitely the choice when selecting the a hassle-free plug and play chime microphone.

• Cardioid pattern condenser microphone with chime designed for paging application
• Two adjustment points allow more flexibility in positioning angles
• Option of operating with battery or DC power

0.00 ₱ 0.00 ₱


Contact Us

Product Specification


Element Condenser
Power Source 6V DC (4 x “AA” batteries) or DC adapter: 9 - 24V
Current Consumption 13mA during chime and 6 mA microphone operation
Polar Pattern Cardioid
Impedance 600 Ω, balanced
Frequency Response 50 Hz - 18 kHz
Compatible Connector XLR-3-32 Equivalent, RJ45: Audio Output, Power supply and contact output
Microphone -41 dB ±3 dB (1 kHz ,0dB = 1V/Pa)
Chime Tones –31 dB ±3 dB (max. position)
Chime Tones 4-tone chime (up/ down)
Operating Temperature 0 °C - 40 °C
Stand Mic ABS resin, Black, Paint
MIC shaft Copper alloy, Black, Paint
Dimensions 110 (W) x 145 (L) x 532 (H) mm
Weight 558g (excludes batteries)
Included Accessories Windscreen x1, XLR Cable Stereo Phone Plug (7.5m) x1
Optional Accessories AD-246 AC adapter



Download Center


Datasheet

Quick Start Guide

User Manual
