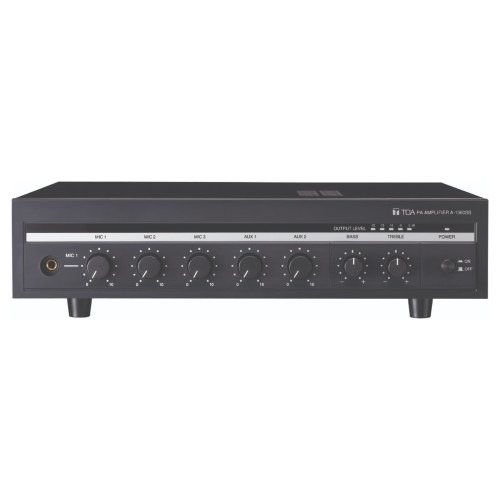

TOA A-1360SS Mixer Power Amplifier
- All products
- PABGM
- TOA A-1360SS Mixer Power Amplifier
- PABGM
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Product Specification
| Power Source | 230 V AC, 50/60 Hz |
| Rated Output | 240 W |
| Power Consumption | 252 W (IEC60065) |
| Frequency Response | 50 Hz – 18,000 Hz (±3 dB) |
| Distortion | Less than 0.3 % at 1 kHz, 1/3 rated power |
| MIC 1 | -52 dBV (2.5 mV), 600 Ω, unbalanced, Equivalent to phone jack |
| MIC 2 | -52 dBV (2.5 mV), 600 Ω, unbalanced, Equivalent to phone jack |
| MIC 3 | -52 dBV (2.5 mV), 600 Ω, unbalanced, Equivalent to phone jack |
| AUX 1 | -10 dB* (316 mV), 10 kΩ, unbalanced, RCA pin jack |
| AUX 2 | -10 dB* (316 mV), 10 kΩ, unbalanced, RCA pin jack |
| Speaker Out | Speaker Outputs plug in screw connector |
| Speaker Selector | 5-zone selector (all zones simultaneously selectable), plug-in screw, 1 all call |
| Pre Out | 0 dBV (1.0 V), 600 Ω, unbalanced, RCA pin jack |
| S/N Ratio | Over 65 dB (MIC 1 – MIC 3), Over 75 dB (AUX 1 – AUX 2) |
| Tone Controls | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz |
| Muting | MIC 1 overrides other input signals with 0 – 40 dB attenuation by voice switch of MIC 1 input level |
| Indicators | Power LED, Signal LED |
| Finish | Front Panel: ABS resin, Color Black, Case: Steel plate, Painting Black |
| Dimensions | 420 (W) × 110 (H) × 384 (D) mm |
| Weight | 12.8 kg |
| Accessory | AC Power cord (1 pc) |
| Power Source | 230 V AC, 50/60 Hz |
| Rated Output | 240 W |
| Power Consumption | 252 W (IEC60065) |
| Frequency Response | 50 Hz – 18,000 Hz (±3 dB) |
| Distortion | Less than 0.3 % at 1 kHz, 1/3 rated power |
| MIC 1 | -52 dBV (2.5 mV), 600 Ω, unbalanced, Equivalent to phone jack |
| MIC 2 | -52 dBV (2.5 mV), 600 Ω, unbalanced, Equivalent to phone jack |
| MIC 3 | -52 dBV (2.5 mV), 600 Ω, unbalanced, Equivalent to phone jack |
| AUX 1 | -10 dB* (316 mV), 10 kΩ, unbalanced, RCA pin jack |
| AUX 2 | -10 dB* (316 mV), 10 kΩ, unbalanced, RCA pin jack |
| Speaker Out | Speaker Outputs plug in screw connector |
| Speaker Selector | 5-zone selector (all zones simultaneously selectable), plug-in screw, 1 all call |
| Pre Out | 0 dBV (1.0 V), 600 Ω, unbalanced, RCA pin jack |
| S/N Ratio | Over 65 dB (MIC 1 – MIC 3), Over 75 dB (AUX 1 – AUX 2) |
| Tone Controls | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz |
| Muting | MIC 1 overrides other input signals with 0 – 40 dB attenuation by voice switch of MIC 1 input level |
| Indicators | Power LED, Signal LED |
| Finish | Front Panel: ABS resin, Color Black, Case: Steel plate, Painting Black |
| Dimensions | 420 (W) × 110 (H) × 384 (D) mm |
| Weight | 12.8 kg |
| Accessory | AC Power cord (1 pc) |
