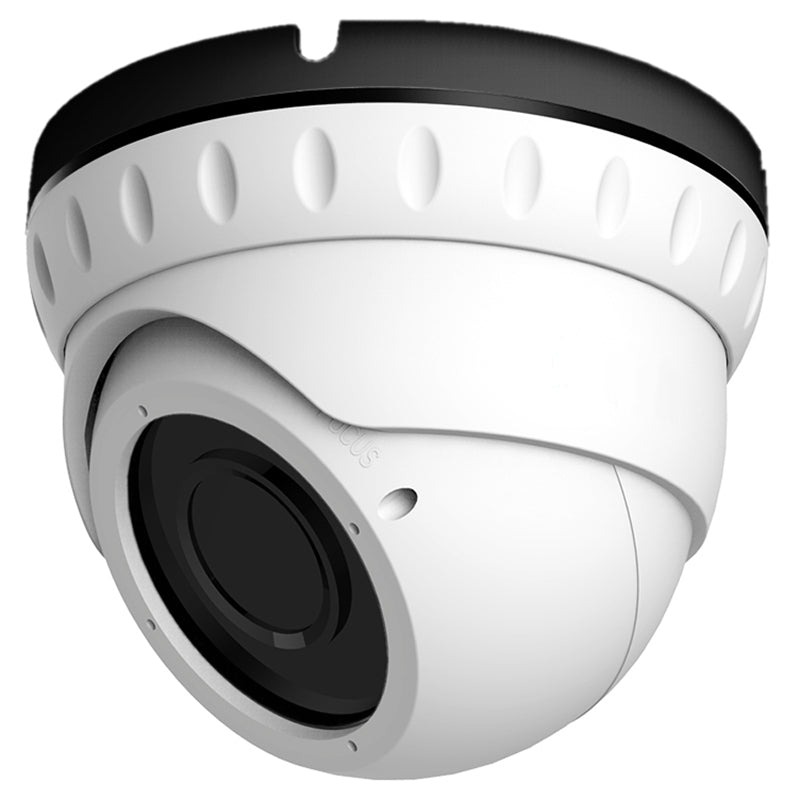

TECHCORE KDSHR30HTC200FS VARI-FOCAL LENS DOME CAMERA

  1. All products
  2. AHD Cameras
  3. TECHCORE KDSHR30HTC200FS VARI-FOCAL LENS DOME CAMERA
  4. AHD Cameras
Pricelist: - Pricelist
Pricelist: - Pricelist
TECHCORE KDSHR30HTC200FS VARI-FOCAL LENS DOME CAMERA

TECHCORE KDSHR30HTC200FS VARI-FOCAL LENS DOME CAMERA

•1080P HD TVI/CVI/AHD/ 960H CVBS 4 IN 1 og Dome Camera This dome camera 1080P supports 4 different video output 1080P TVI, 1080P AHD, 1080P CVI and CVBS (960H). Required 1080P/1080Lite/1080N TVI/AHD/CVI DVR ( SDI DVR not comptiabe ) ( Some 720P DVR not compatiable ) Required coaxiable BNC cable and power adapter but not included.
•2.8-12mm Manual Varifocal lens, Full Metal Case for Vandalproof and weatherproof With 36 pcs IR infrared LEDs, it has 98ft IR range, take clear picture during both day- and night-time. IP66 weatherproof housing provides protection from elements, including dust and sand, as well as harsh weather conditions, such as rain and snow.
•1080P HD Resolution and 3-Axis camera stand 1/2.7″SONY CMOS Sensor with 2.1 Megapixel Resolution , which ensures clear and bright pictures security solution monitoring activity indoors and outdoor .
Notice :It requires a DVR recorder 1080P Lited; 1080P; 5MP DVR. Can not be used stand alone.

0.00 ₱ 0.00 ₱

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Your Dynamic Snippet will be displayed here... This message is displayed because youy did not provide both a filter and a template to use.
  • Details
  • Download
  • Models


Video Output 4in1 - AHD/CVI/TVI/CVBS
Image Sensor 05- IMX323
Image resolution 01- 1080P
Effective Pixels 1920(H)*1080(V)
Focus Length 2.8-12mm
Focus Control Manual
Lens Type Manual
Pixels 3M Pixels
IR LED 14µ x 24PCS /¢5 (12µ) x 36PCS (Optional)
IR Distance 30M
White Balance AUTO / MANUAL
Gain Control AUTO
Noise Reduction 3DNR
Picture Adjustment Yes
WDR Yes
OSD Support Yes
UTC Yes
Housing IP66
Bracket Yes
IR Cut Filter Yes
Power Source 03- DC12V±10%, 700mA
Dimension 09- ¢131 x 93(H) mm
Weight 800g
OSD Menu Language Yes
DSP 01- FH8550D
Electronic Shutter 1/25s~1/50,000s , 1/30s~1/60,000s
S/N Ratio ≥50dB
TV System PAL/NTSC
Scanning System Progressive Scan
Motor Iris Support NO
IR Status Under 10 Lux by CDS
IR Power On CDS Motor Control
Day/Night Yes
Dual Voltage No
Heater No
Operation Temperature -10℃ ~ +50℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
