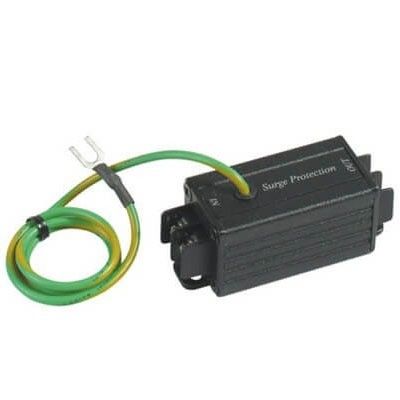

SP004 UTP Surge Protector

https://www.techcore.com.ph/web/image/product.template/153/image_1920?unique=15bb802

SP004 UTP Surge Protector Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera etc.

This combination does not exist.

Contact Us
Accessories



Product Specification


Surge Protection Attack Time 1 ns
Maximum Surge Voltage 4 KV
Surge Life 300 surges of 100Amps
Normal Resistance Across Coax 10,000 MΩ
Surge Resistance Approx. 0Ω
BAND PASS 0~1 GHZ
Power Passing Capability 130V AC / DC, 65 Vrms at10 Amps
Insertion Loss Less than 0.2 dB
Return Loss (75 ohms) 16dB
Power IN Put – for SP001VPD AC 40V(MAX), DC56V(MAX)
Connectors Terminal
Dimensions W x H x D mm 65x25x25
WEIGHT g 65
