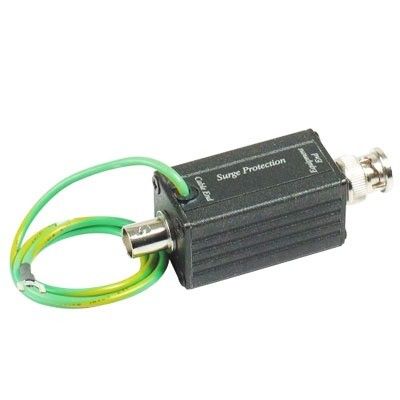

SP001 Coaxial Surge Protection

SP001 Coaxial Surge Protection

• Performs a different function than grounding requirements.
• Protects equipment from high voltage surges from nearby lightning strikes.
• Two stage protection: under 1ns-90V, over 10ns-12V.
• Wide range of applications: CCTV/CATV system, Antenna of
• Television, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR…etc.

Accessories
0.00 ₱ 0.00 ₱

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us


BNC male to BNC female
Hi Frequency for both CCTV and CATVuse
Surge Protection Attack Time: 1 ns
Maximum Surge Current: 4 KV
Surge Life: 300 surges of 100Amps
Normal Resistance Across Coax: 10,000 M£[
Surge ResistanceApprox: 0£[
BAND PASS: 0~1 GHZ
Power Passing Capability 130V AC/DC, 65 Vrms at 10Amps
Insertion Loss: Less than 0.2 dB
Return Loss (75 ohms): 16dB
