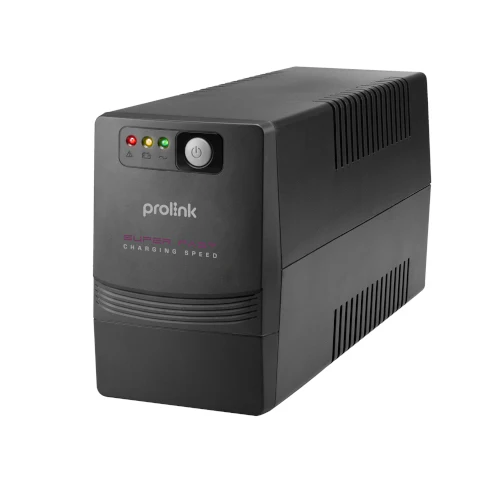

Prolink PRO1501SFCU UPS

Model: PRO1501SFCU

Type: Line‑Interactive UPS with AVR and Super‑Fast Charging technology

Power & Output

• Capacity: 1500 VA / ~900 W
• Output Voltage: 230 VAC ± 10%
• Waveform: Simulated sine wave (battery mode)
• Transfer Time: ~2–6 ms typical

Input

• Nominal Voltage: 230 VAC
• Input Voltage Range: 140–300 VAC ± 5%
• Frequency: 50/60 Hz (auto‑sensing)

Battery

• Battery: 2 × 12 V / 10 Ah sealed lead‑acid
• Recharge Time: ~2–4 hours to ~90% capacity

Interfaces & Protection

• USB port for monitoring
• RJ45 modem/fax protection
• Surge & short‑circuit protection

Physical

• Dimensions: ~320 × 130 × 182 mm
• Weight: ~10.4 kg

Key Features:

• 1500 VA / 900 W battery backup for PCs & networking devices
• Line‑Interactive with AVR stabilizes voltage (140–300 V AC)
• Super‑Fast Charging ~90 % in 2–4 hrs
• Simulated sine wave output
• Fast transfer time: ~2–6 ms
• USB port monitoring & safe shutdown
• Surge & short-circuit protection
