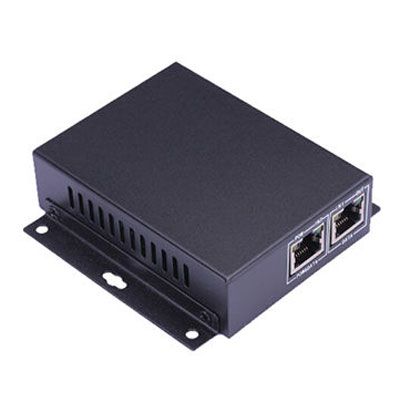

PD803 30W PoE Splitter

https://www.techcore.com.ph/web/image/product.template/151/image_1920?unique=130b99d

• Support the IEEE 802.3af / at the Power over Ethernet standard.
• Support 10/100/1000Mbps data transmission.
• PD receiving end supports voltage of 48V turn into 12V, user-friendly UPS DC power supply.
• Provide 12V voltage to adapt to a variety of small network equipment.
• Circuit isolation protection, effective protection of electrical equipment.
• High quality design, guarantees the stability and reliability of the equipment in work.

This combination does not exist.

Contact Us
Accessories



Product Specification


POE Parameters Maximum Power: 15.4W (IEEE 802.3af) 25.5W (IEEE 802.3at) | Input voltage :36-57V Output voltage: 12V
Power pin 1 2 3 6 or 4 5 7 8 (compatible)

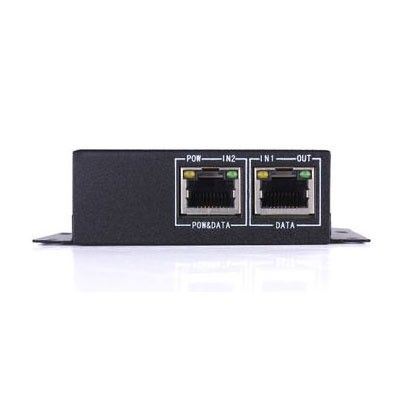

Connect Port Input: an input RJ45 interface | Output: an output RJ45 connector and a DC output interface | Data transfer rate: 10/100/1000Mbps | The maximum transmission distance: 100 meters
Network standards IEEE802.3i 10 BASE-T, IEEE802.3i 100 BASE-TX, IEEE802.3x flow control, IEEE802.3af /IEEE802.3at
LED indicator System: Power,PoE max. power | Per port: Link,speed,PoE active, PoE error
Certificate CE,FCC,ROHS
Working Term 0℃-50℃
Storage Term -10℃-70℃
Operating Humidity 20％-85％,Non-condensing
Size 94*70*26 mm (L*W*H)
Weight 0.3kg
