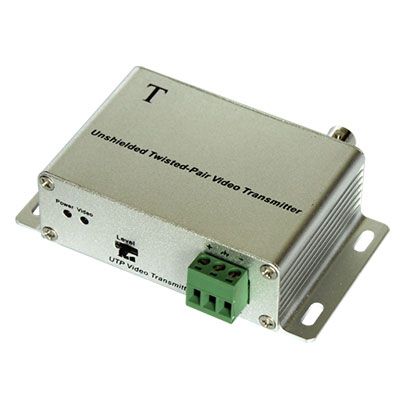

HY-111T Single Channel Transmitter

https://www.techcore.com.ph/web/image/product.template/143/image_1920?unique=834158b

• Video format: NTSC, PAL, SECAM
• Maximum input 1Vp-p
• Wire Type: UTP(22~24) AWG
• Wire Category: CAT2 ~ CAT6

This combination does not exist.

Contact Us
Accessories



Product Specification


Video Range with Active Transmitter 2000mtrs/6560ft
Video Format NTSC, PAL, SECAM
Maximum Input 1Vp-p
Insertion loss 0.3dB per pair from 20kHz~8Mhz
Frequency Response DC to 8MHz
CMMR 60dB, 20kHz~8MHz
Wire Type UTP(22~24) AWG
Wire Category CAT2~CAT6
BNC Connection Nickel Plated
Coax 75Ω@1MHz
RJ45 100Ω@1MHz
Power Input 1A@DC12V
Differential Capacitance 19pF/ft max (62pf/m max))
Operating Temperature -14~140°F (-10 ~ 60°C)
Storage Temperature -22~140°F (-30 ~ 60°C)
Humidity Range 0~95%, non-condensing
