Hored AI106G 6-port Gigabit AI PoE Switch

-
  1. All Products
  2. Network Switches
  3. Hored AI106G 6-port Gigabit AI PoE Switch

Hored AI106G 6-port Gigabit AI PoE Switch

https://www.techcore.com.ph/web/image/product.template/195/image_1920?unique=3cbf8a0

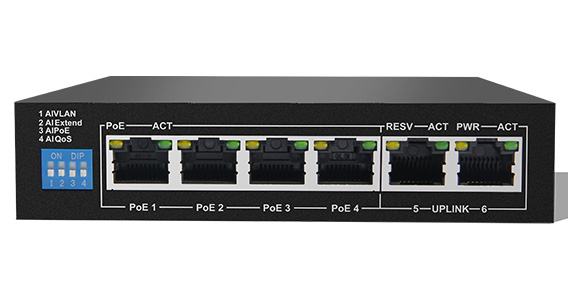

• AI Smart POE Switch, 4* 1000Mbps RJ45 port( POE is available), 2* 1000Mbps Uplink.
• 5 working modes:
• Standard switching mode: All ports communicate freely;
• AI VLAN: Avoid the internet storm and enhance the network ability;
• AI Extend: Extend 250M transmission;
• AI PoE: Automatic self checking, reboot the device while find it fake dead;
• AI QoS，Video data first, more fluent transmission

This combination does not exist.

Contact Us
Hored Network Switch PoE Switch



Product Specification


Network Port 4 10/100/1000Mbps PoE RJ45 port ( Port 1~ port4);
2 10/100/1000Mbps RJ45 port uplink(Port5~port 6)
Transfer Rate 1000Mbpsfull Duplex
Network protocol and standard IEEE802.3i, IEEE802.3u,IEEE802.3x, IEEE802.3af, IEEE802.3at,IEEE802.3ab
Performance Bandwidth：12Gbps(no block);
Frame filtering and transmission rate:
10M port maximum 14,880pps
100M port maximum 148,810pps
1000Mport maximum 1,488,100pps
LED indicator Power, RESV, LINK/ACT
POE pin 1/2(+)，3/6(-)
Power Max power for single port: 30W,
External power adapter: 60W
Dimensions Size（LxWxH): 125mmx75mmx27mm,
Weight: 0.5kg
Environment Operating Temperature: 0°~40°C
Operating Humidity: 10%~90%，Non-condensing
Safety regulation CE/ROHS/FCC/CCC



Download Center


Datasheet

Quick Start Guide

User Manual
