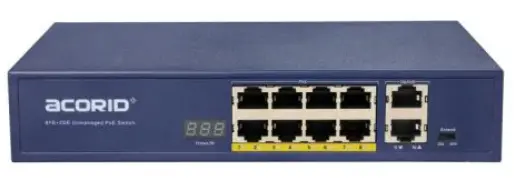

LS1708P2G PoE Switch

• AI Smart POE Switch, 8* 100Mbps RJ45 port( 250M POE is available), 2* 100Mbps Uplink.Support the management of Apollo cloud.
• 5 working modes:
• Standard switching mode: All ports communicate freely;
• AI VLAN: Avoid the internet storm and enhance the network ability;
• AI Extend: Extend 250M transmission;
• AI PoE: Automatic self checking, reboot the device while find it fake dead;
• AI QoS，Video data first, more fluent transmission.

Hored Network Switch
0.00 ₱ 0.00 ₱

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Product Specification


Network Port 8 10/100Mbps PoE RJ45 port (port 1～port 8), 2 10/100Mbps non-POE RJ45 port(port 9~port 10)
Transfer Rate 100Mbps full Duplex, 10 or100Mbps Half Duplex
Network protocol and standard IEEE802.3i、IEEE802.3u、IEEE802.3x、IEEE802.3af、IEEE802.3at
Bandwidth 2Gbps(no block)
Network delay(100 to100Mbps maximum 20 μs (using 64 byte packet)
Frame filtering and transmission rate 10M port maximum 14,880pps; 100M port maximum 148,810pps
LED indicator Power, RESV, LINK/ACT
POE Pin 1/2(+)，3/6(-)
Max output power single port 30W
Max Power supply 96W
Size (LxWxH) 184mm*94mm*27mm
Weight 0.5kg
Operating Temperature 0°~40°C
Operating Humidity 10%~90%，Non-condensing
Safety regulations CE/ROHS/FCC/CCC



Download Center


Datasheet

Quick Start Guide

User Manual
