| Image Sensor: |
1/2.7” Progressive Scan CMOS |
| Signal System: |
PAL/NTSC |
| Min. Illumination: |
0.01Lux @(F1.2,AGC ON) ,0 Lux with IR；0.028 Lux @(F2.0,AGC ON), 0 Lux with IR |
| Shutter time: |
1s ~ 1/100,000s |
| Slow shutter: |
Support |

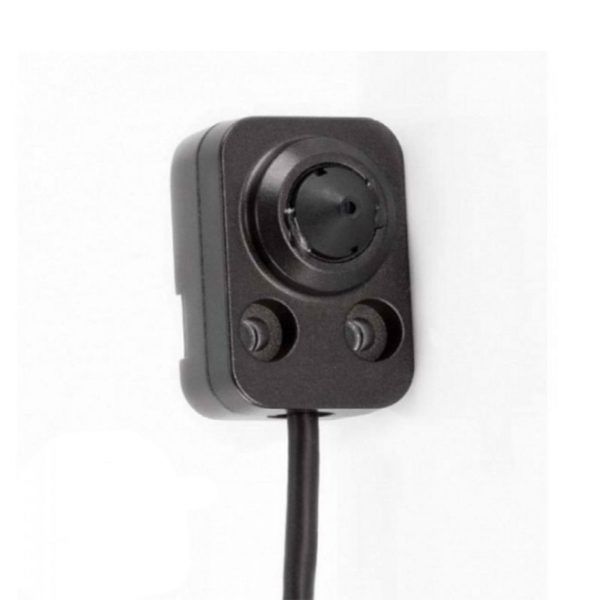

| Lens: |
L10/L20/10/20: 3.7mm @F2.5, angle of view: 78.5°; L30/30: 2.8mm@F2.0, angle of view: 109.4°/ 4mm @F2.2, angle of view: 90°/ 6 mm @F2.0, angle of view: 53.9° (Ingress Protection: IP66); L40: 2.8mm@F2.0, angle of view: 109.4°/ 4mm @F2.2, angle of view: 90°/ 6 mm @F2.0, angle of view: 53.9°/ Fisheye: 1.39mm@F2.0, angle of view: 180° (Ingress Protection: IP66) |
| Lens Mount: |
M12 |
| Lens Cable Length: |
Optional 2m or 8m |
| Wide Dynamic Range: |
120 dB |
| Digital noise reduction: |
3D DNR |
| Video Compression: |
H.264/MJPEG |
| H.264 code profile: |
Main Profile / High Profile |
| Video bit rate: |
32Kbps~16Mbps |
| Audio Compression: |
G.711/G.722.1/G.726/MP2L2/PCM |
| Audio bit rate: |
64Kbps (G.711)/16Kbps (G.722.1)/16Kbps (G.726)/32 to 160Kbps (MP2L2) |
| Dual Stream: |
Yes |
| Triple Streams: |
Yes |
| Max. Image Resolution: |
1920 x 1080 |
| Frame Rate: |
50Hz: 25fps (1920×1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920×1080, 1280 × 960, 1280 × 720)
Third Stream: Only single channel camera supports third stream, which is independent with main stream, up to 50Hz: 10fps (1280 × 960); 60Hz: 10fps (1280 × 960) |
| Image Enhancement: |
BLC/3D DNR/ROI/Defog |
| Image Settings: |
Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC: |
Support |
| Smart Defog: |
Support |
| 3D DNR: |
support |
| ROI: |
Up to 4 fixed areas in each stream |
| Picture Overlay: |
Support 128 × 128 size BMP with 24-bit depth image overlay, zone optional |
| Day/Night Switch: |
Auto / Timing / Alarm trigger |
| Network Storage: |
NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger: |
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols: |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function: |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
| System Compatibility: |
ONVIF (Profile S, Profile G),ISAPI |
| Communication Interface: |
1 RJ45 10M/100M Ethernet interface |
| Audio: |
1 input, 1 output |
| Audio Input: |
1-ch 3.5 mm audio interface, MIC IN/LINE IN |
| Audio Output: |
1-ch 3.5mm audio interface |
| Alarm: |
1-ch alarm input and 1-ch alarm output |
| Alarm Input: |
1 |
| Alarm Output: |
1 |
| On-board storage: |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: |
Yes |
| Recognition: |
Face Detection |
| Operation Condition: |
Temperature :-30 °C to 60 °C (-22 °F to 140 °F); Humidity 95% or less (non-condensing) |
| Power Supply: |
12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: |
Max. 6.5 W |
| Dimensions: |
78×105×32 mm (3.07” × 4.13” × 1.26”) |
| Weight: |
Main body: 210g |
| Cylindrical lens: |
113g (2m), 233g (8m) |
| Block-shaped lens |
99g (2m), 220g (8m) |
| Fixed focal lens: |
129g (2m), 242g (8m) |
| Ball-shaped lens: |
120g (2m), 268.4g (8m) |
| Package + accessories: |
224g |
