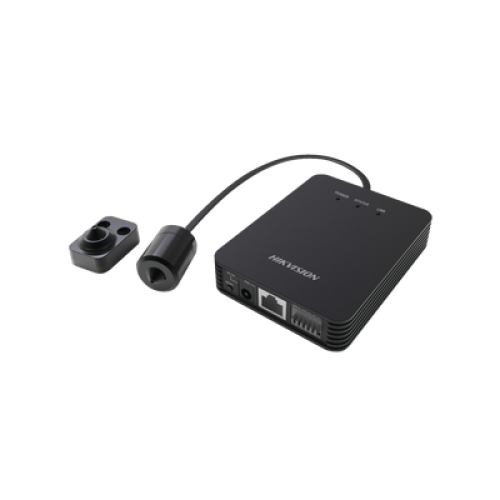

Hikvision SMART IP DS-2CD6424FWD-10 (2m) Pinhole Camera

• 1/2.7’’ progressive scan CMOS
• Up to 2MP resolution
• 120dB WDR
• PoE supported
• Onboard storage, up to 128GB
• Triple video streams
• Support Defog, HLC

IP HD Camera Hikvision Pinhole
0.00 ₱ 0.00 ₱

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Product Specification


Image Sensor: 1/2.7” Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR；0.028 Lux @(F2.0,AGC ON), 0 Lux with IR
Shutter time: 1s ~ 1/100,000s
Slow shutter: Support
Lens: L10/L20/10/20: 3.7mm @F2.5, angle of view: 78.5°; L30/30: 2.8mm@F2.0, angle of view: 109.4°/ 4mm @F2.2, angle of view: 90°/ 6 mm @F2.0, angle of view: 53.9° (Ingress Protection: IP66); L40: 2.8mm@F2.0, angle of view: 109.4°/ 4mm @F2.2, angle of view: 90°/ 6 mm @F2.0, angle of view: 53.9°/ Fisheye: 1.39mm@F2.0, angle of view: 180° (Ingress Protection: IP66)
Lens Mount: M12
Lens Cable Length: Optional 2m or 8m
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Video Compression: H.264/MJPEG
H.264 code profile: Main Profile / High Profile
Video bit rate: 32Kbps~16Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate: 64Kbps (G.711)/16Kbps (G.722.1)/16Kbps (G.726)/32 to 160Kbps (MP2L2)
Dual Stream: Yes
Triple Streams: Yes
Max. Image Resolution: 1920 x 1080
Frame Rate: 50Hz: 25fps (1920×1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920×1080, 1280 × 960, 1280 × 720)
Third Stream: Only single channel camera supports third stream, which is independent with main stream, up to 50Hz: 10fps (1280 × 960); 60Hz: 10fps (1280 × 960)
Image Enhancement: BLC/3D DNR/ROI/Defog
Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC: Support
Smart Defog: Support
3D DNR: support
ROI: Up to 4 fixed areas in each stream
Picture Overlay: Support 128 × 128 size BMP with 24-bit depth image overlay, zone optional
Day/Night Switch: Auto / Timing / Alarm trigger
Network Storage: NAS (Support NFS,SMB/CIFS)
Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
System Compatibility: ONVIF (Profile S, Profile G),ISAPI
Communication Interface: 1 RJ45 10M/100M Ethernet interface
Audio: 1 input, 1 output
Audio Input: 1-ch 3.5 mm audio interface, MIC IN/LINE IN
Audio Output: 1-ch 3.5mm audio interface
Alarm: 1-ch alarm input and 1-ch alarm output
Alarm Input: 1
Alarm Output: 1
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Recognition: Face Detection
Operation Condition: Temperature :-30 °C to 60 °C (-22 °F to 140 °F); Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 10%, PoE (802.3af)
Power Consumption: Max. 6.5 W
Dimensions: 78×105×32 mm (3.07” × 4.13” × 1.26”)
Weight: Main body: 210g
Cylindrical lens: 113g (2m), 233g (8m)
Block-shaped lens 99g (2m), 220g (8m)
Fixed focal lens: 129g (2m), 242g (8m)
Ball-shaped lens: 120g (2m), 268.4g (8m)
Package + accessories: 224g
