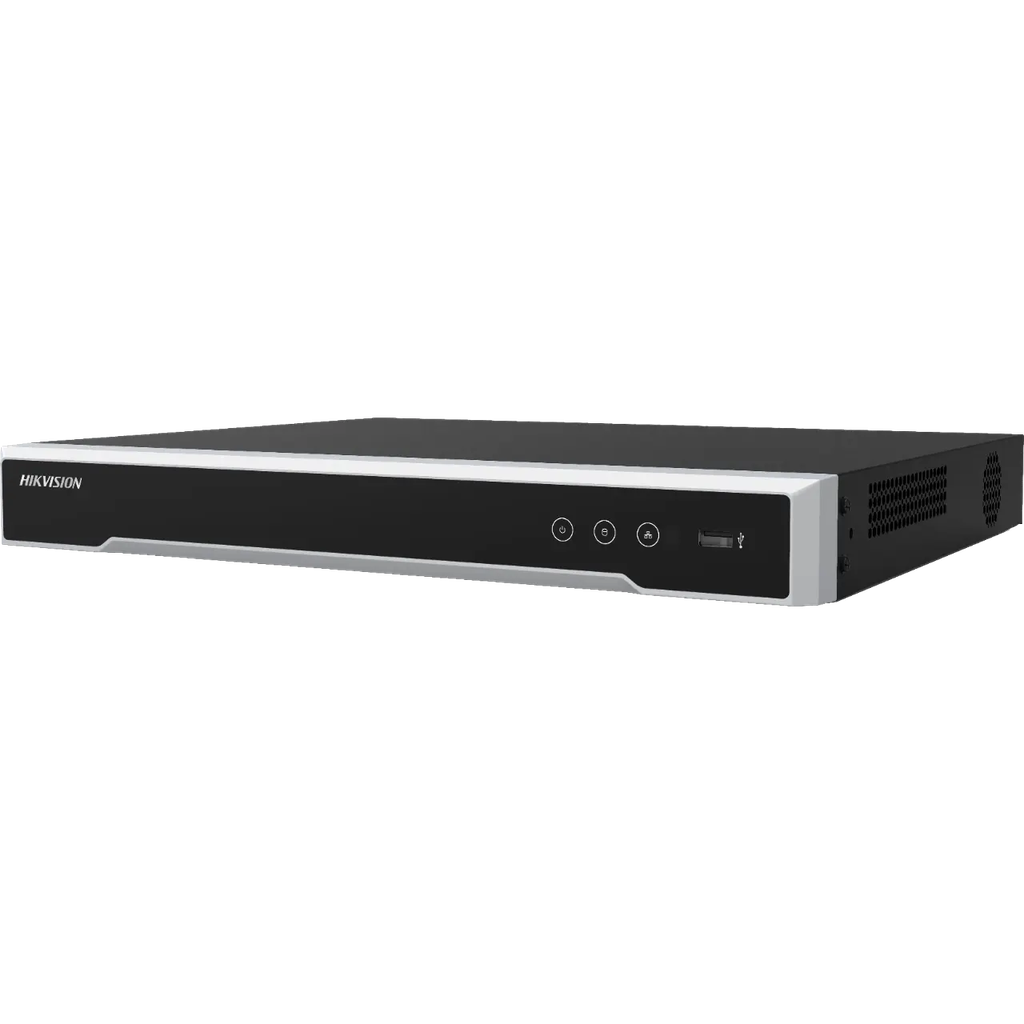

Hikvision DS7616NI-Q2 NVR

-
  1. All Products
  2. NVR
  3. Hikvision DS7616NI-Q2 NVR

Hikvision DS7616NI-Q2 NVR

http://www.techcore.com.ph/web/image/product.template/65/image_1920?unique=f964094

• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
• Up to 160 Mbps incoming bandwidth

This combination does not exist.

Contact Us
NVR Pro Series



Product Specification


IP Video Input 16-ch
HDMI Output 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Incoming Bandwidth 160 Mbps
Outgoing Bandwidth 80 Mbps
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding Format H.265+,H.265,H.264+,H.264
Decoding Capability 4-ch@1080p
Synchronous Playback 16-ch
Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE Interface N/A
RAID Type No
SATA 2 SATA interfaces
Capacity Up to 8TB capacity for each disk
USB Interface 2 × USB 2.0
Power Supply 12 VDC, 2.1 A
Consumption ≤ 15W
Working Temperature -10 to +55º C (+14 to +131º F)
Working Humidity 10 to 90 %
Chassis 1U chassis
Dimension (W × D × H) 385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
Weight ≤ 1.8 kg (4.0 lb)



Download Center


Datasheet

Quick Start Guide

User Manual
