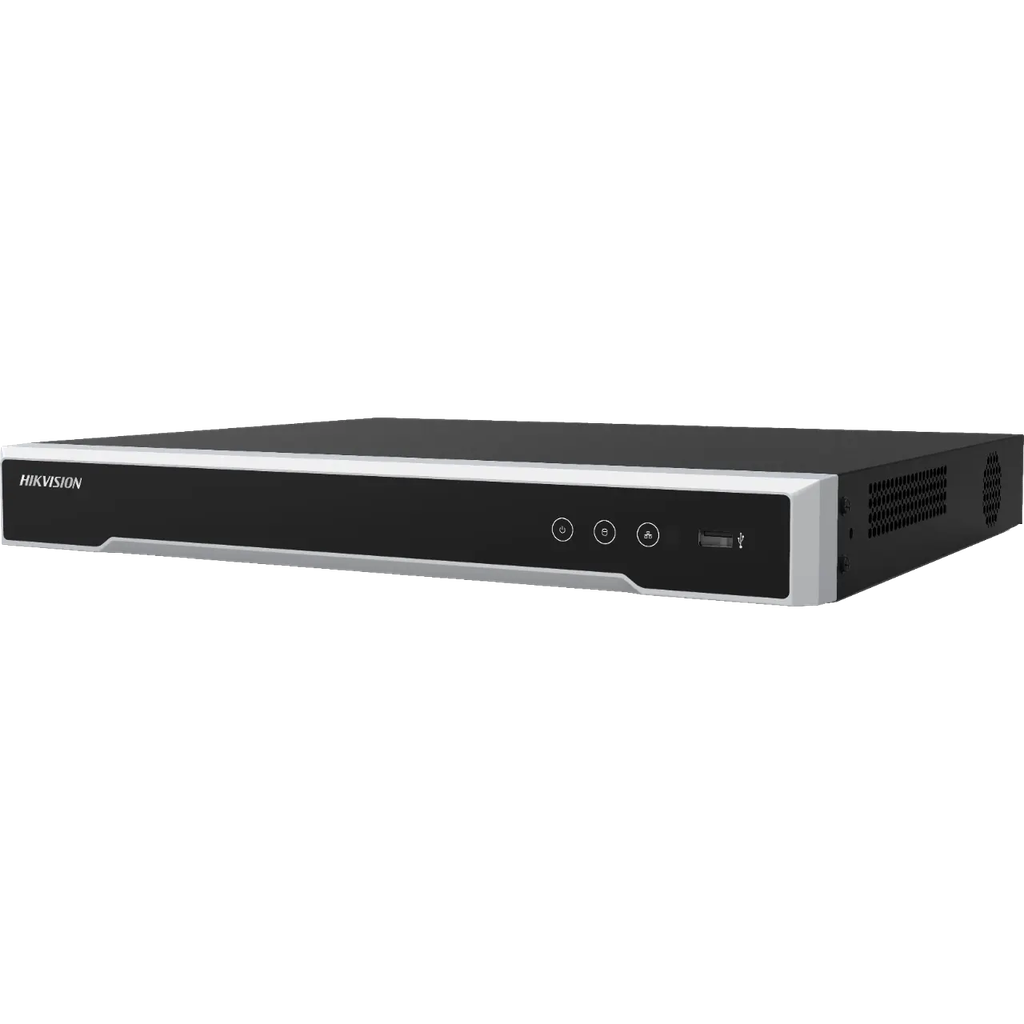

Hikvision DS7616NI-Q2 NVR
- All products
- NVR
- Hikvision DS7616NI-Q2 NVR
- NVR
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Product Specification
| IP Video Input | 16-ch |
|---|---|
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Decoding Format | H.265+,H.265,H.264+,H.264 |
| Decoding Capability | 4-ch@1080p |
| Synchronous Playback | 16-ch |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE Interface | N/A |
| RAID Type | No |
| SATA | 2 SATA interfaces |
| Capacity | Up to 8TB capacity for each disk |
| USB Interface | 2 × USB 2.0 |
| Power Supply | 12 VDC, 2.1 A |
| Consumption | ≤ 15W |
| Working Temperature | -10 to +55º C (+14 to +131º F) |
| Working Humidity | 10 to 90 % |
| Chassis | 1U chassis |
| Dimension (W × D × H) | 385 × 315 × 52 mm (15.2"× 12.4" × 2.0") |
| Weight | ≤ 1.8 kg (4.0 lb) |
| IP Video Input | 16-ch |
|---|---|
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Decoding Format | H.265+,H.265,H.264+,H.264 |
| Decoding Capability | 4-ch@1080p |
| Synchronous Playback | 16-ch |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE Interface | N/A |
| RAID Type | No |
| SATA | 2 SATA interfaces |
| Capacity | Up to 8TB capacity for each disk |
| USB Interface | 2 × USB 2.0 |
| Power Supply | 12 VDC, 2.1 A |
| Consumption | ≤ 15W |
| Working Temperature | -10 to +55º C (+14 to +131º F) |
| Working Humidity | 10 to 90 % |
| Chassis | 1U chassis |
| Dimension (W × D × H) | 385 × 315 × 52 mm (15.2"× 12.4" × 2.0") |
| Weight | ≤ 1.8 kg (4.0 lb) |
