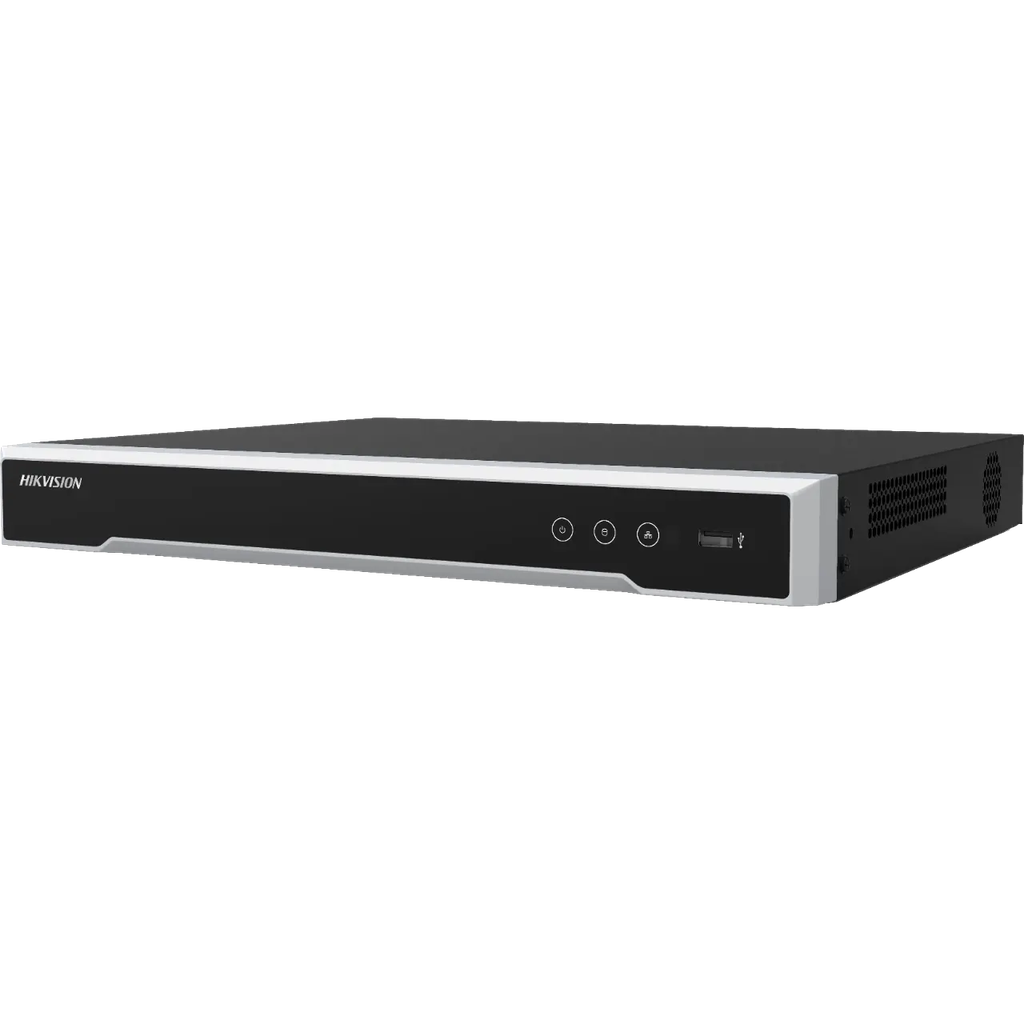

Hikvision DS7616NI-K2/16P NVR

Hikvision DS7616NI-K2/16P NVR

• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
• 1 HDMI and 1 VGA interfaces, both interfaces support independent video output
• 2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
• Up to 160 Mbps incoming bandwidth
• Plug-and-play with 16 power over Ethernet (PoE) interfaces

NVR Pro Series
0.00 ₱ 0.00 ₱

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Product Specification


Decoding Capability 8*1080P
IP Video Input 16-ch
Incoming Bandwidtd 160 Mbps
Outgoing Bandwidtd 160 Mbps
HDMI Output 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode HDMI/VGA independent output
Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using tde audio input)
Decoding Format H.265/H.265+/H.264/H.264+
Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 16-ch
Decoding Capability 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726
Remote Connection 128-ch
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Etdernet interface
PoE Interface 16, RJ-45 10/100 Mbps self-adaptive Etdernet interface
Power ≤ 200 W
Standard IEEE 802.3 af/at
SATA 2 SATA interfaces
Capacity Up to 10 TB capacity for each HDD
USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarm In/Out 4/1
Power Supply 100 to 240 VAC, 50 to 60Hz
Consumption ≤ 15 W (witdout HDD and PoE off)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10 to 90 %
Dimension (W × D × H) 385 × 315× 52 mm (15.2" × 12.4" × 2.0")
Weight ≤ 3 kg (witdout HDD, 6.6 lb.)
Certification FCC: Part 15 Subpart B, ANSI C63.4-2014; CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
