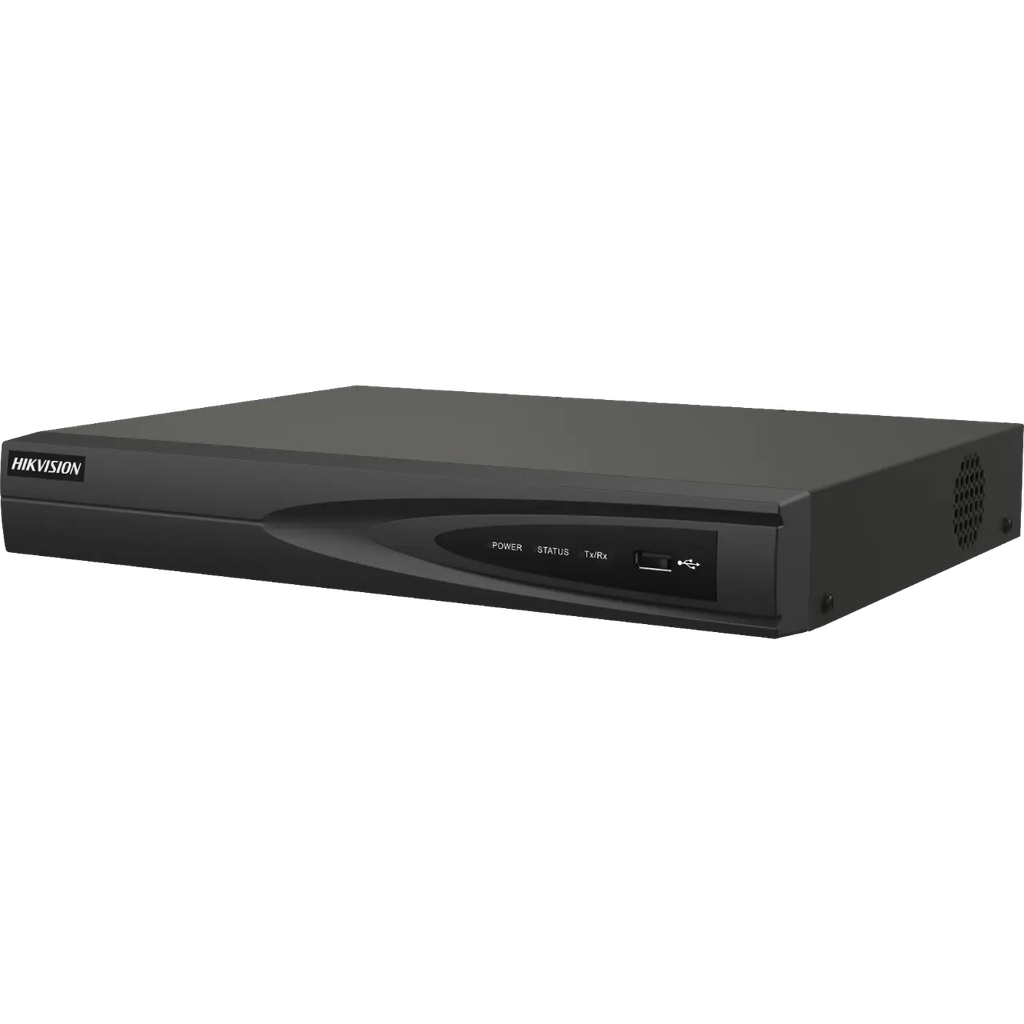

Hikvision DS7604NI-Q1/4P NVR

Hikvision DS7604NI-Q1/4P NVR

• Up to 4-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
• Up to 40 Mbps incoming bandwidth

NVR Pro Series
0.00 ₱ 0.00 ₱

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Product Specification


Human/Vehicle Analysis 1-ch;4-ch
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726
IP Video Input 4-ch
Incoming Bandwidth 40 Mbps
Outgoing Bandwidth 80 Mbps
HDMI Output 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;
1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz; ,HDMI/VGA simultaneous output,;
1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; ,HDMI/VGA simultaneous output,;
1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz ,HDMI/VGA simultaneous output,
VGA Output 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;HDMI/VGA simultaneous output,;
1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz;1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;,HDMI/VGA simultaneous output,
Video Output Mode HDMI/VGA simultaneous output
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding Format H.265+,H.265,H.264+,H.264
Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Decoding Capability 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Synchronous Playback 4-ch
Remote Connection 32
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Interface 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ≤ 50 W
Standard IEEE 802.3 af/at
SATA 1 SATA interface
Capacity Up to 8 TB capacity for each disk
USB Interface 2 × USB 2.0
Alarm In/Out N/A (4/1 is optional)
Power Supply 48 VDC, 1.35 A
Consumption ≤ 10 W (without HDD, and PoE off)
Working Temperature -10 to +55º C (+14 to +131º F)
Working Humidity 10% to 90%
Dimension (W × D × H) 320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight ≤ 1 kg (without HDD, 2.2 lb.)
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
