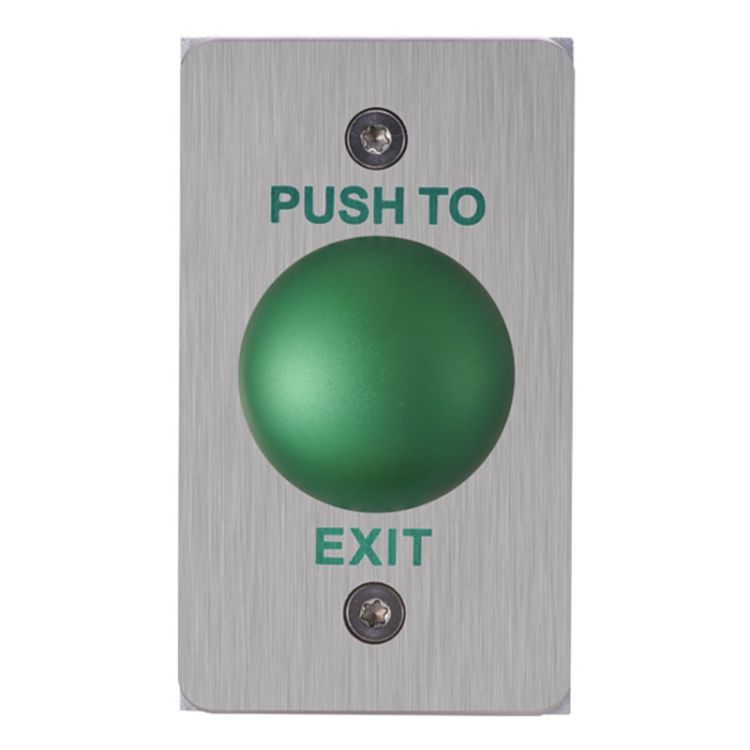

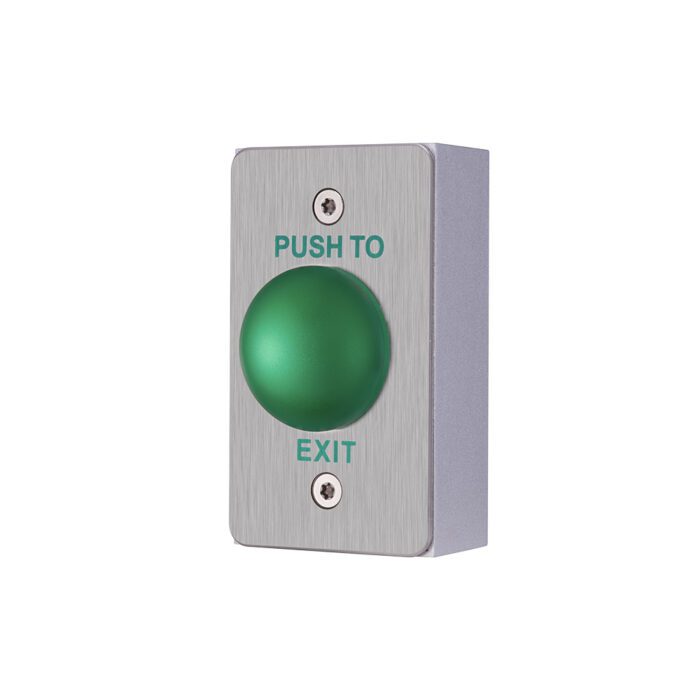

Hikvision DS-K7P05 Exit & Emergency Button

http://www.techcore.com.ph/web/image/product.template/228/image_1920?unique=b740466

• Structure: stainless steel panel, metal button, metal bottom case
• Dimension(L×W×H): 90×35×54mm(3.54×1.38×2.13")

This combination does not exist.

Contact Us
Hikvision Access Control Exit & Emergency Button



Product Specification


Working Temperature -10°C to +55°C (14°F to 131°F)
Working Humidity 0 to 95% (relative humidity)
Dimensions 86 mm×50 mm×44 mm(3.39"×1.97"×1.73")
Weight 0.14kg (0.31lb)
Material Panel: stainless steel, Button: metal, Bottom case: polished zinc alloy with chromium electroplating
Current Rating 3A@36VDC Max
Output Contact NO/NC/COM Contact
Aging Test already passed 500 thousand times aging test
Suitable Door all kinds of doors
