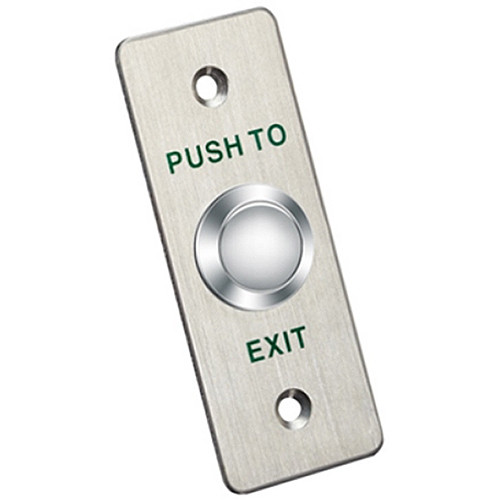

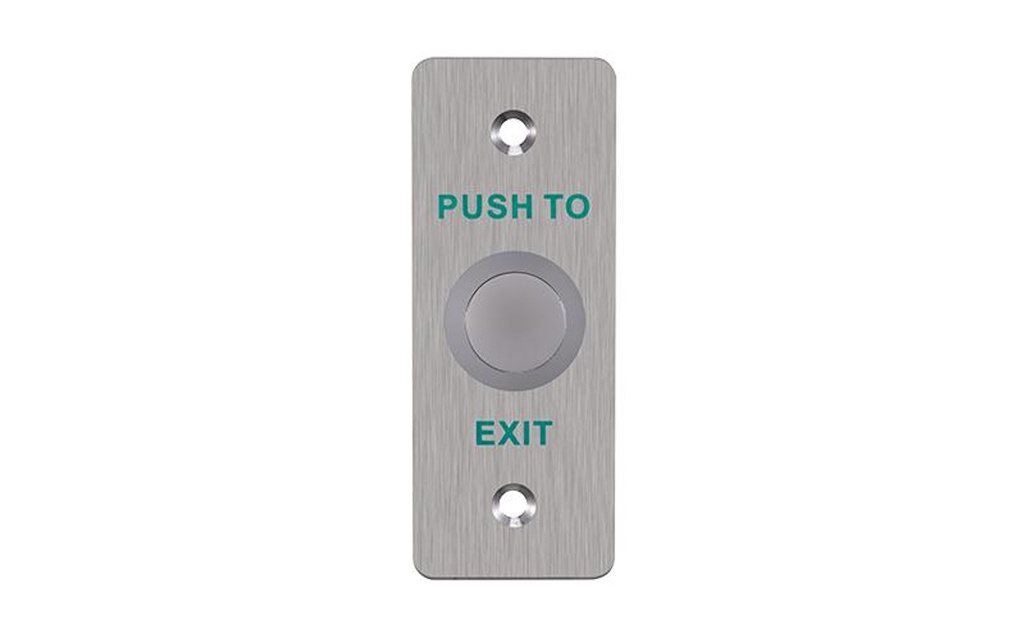

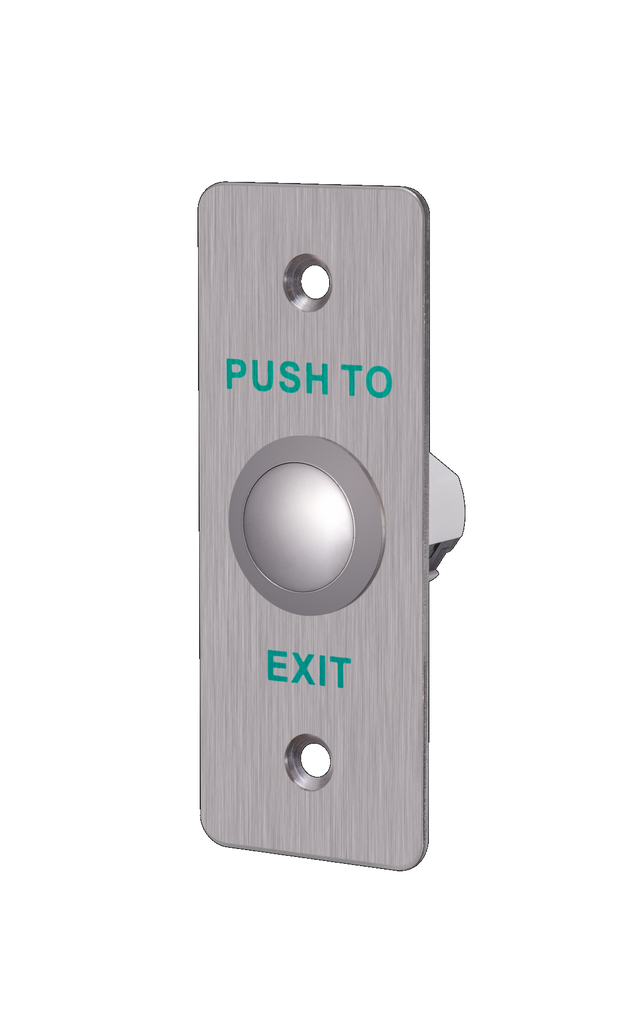

Hikvision DS-K7P02 Exit & Emergency Button

http://www.techcore.com.ph/web/image/product.template/226/image_1920?unique=77afecd

• Aluminum alloy panel, metal button
• Dimension(L×W×H): 90 × 35 × 28.9 mm (3.54 × 1.38 × 1.14")

This combination does not exist.

Contact Us
Hikvision Access Control Exit & Emergency Button



Product Specification


Power Supply 3 A@36 VDC Max.
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 0 to 95% (relative humidity)
Dimensions 90 × 35 ×2 8.9 mm (3.54 × 1.38 × 1.14")
Material Aluminum alloy panel with sandblast, metal button
Door Type Hollow doorframe and embedded-electric box
Signal Output NO/NC/COM contact
Aging Test Already passed 500 thousand times aging test



Download Center


Datasheet
