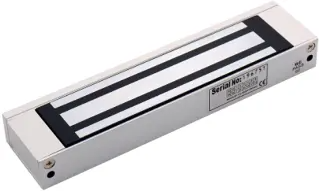

Hikvision DS-K4H250S Magnetic Lock

• The magnetic lock supports static linear thrust of 272 kg (599.8 lbs)
• Power supply can be customized to be 12 VDC or 24 VDC, (default voltage is 12 VDC)
• Equipped with internal voltage dependent resistor (MOV)
• LED indicator displays door lock status
• Abrasion-proof materials

Pro Series Hikvision Accessories Lock
0.00 ₱ 0.00 ₱

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Product Specification


Indicator Red (Door is Unlocked) Green (Door is Locked)
Power Supply 12 VDC/500 mA, 24 VDC/250 mA
Working Temperature -10°C to +55°C (14°F to 131°F)
Working Humidity 0 to 95% (Relative Humidity)
Dimensions Lock body: 240×49×25.5mm (9.45×1.93×1.00"), Armature Plate: 180×38×11mm (7.1×1.5×0.4)"
Weight 2.1kg (4.63lb)
Material Shell: hard Anodizing Electroplating Operated, Lock Body: eco-friendly Zinc with Electroplating Operated, Armature Plate: eco-friendly Zinc with Electroplating Operated
Thrust Max. 272 kg (599.8 lbs) Linear Thrust
Door Type Single leaf,Double leaf, Wooden Door, Glass Door, Metal Door, Fireproof Door
Signal Output Dry Contact Signal Output, Support Maximum Power Rate of 3A, NO Output While Locking and NC Output While Unlocking
