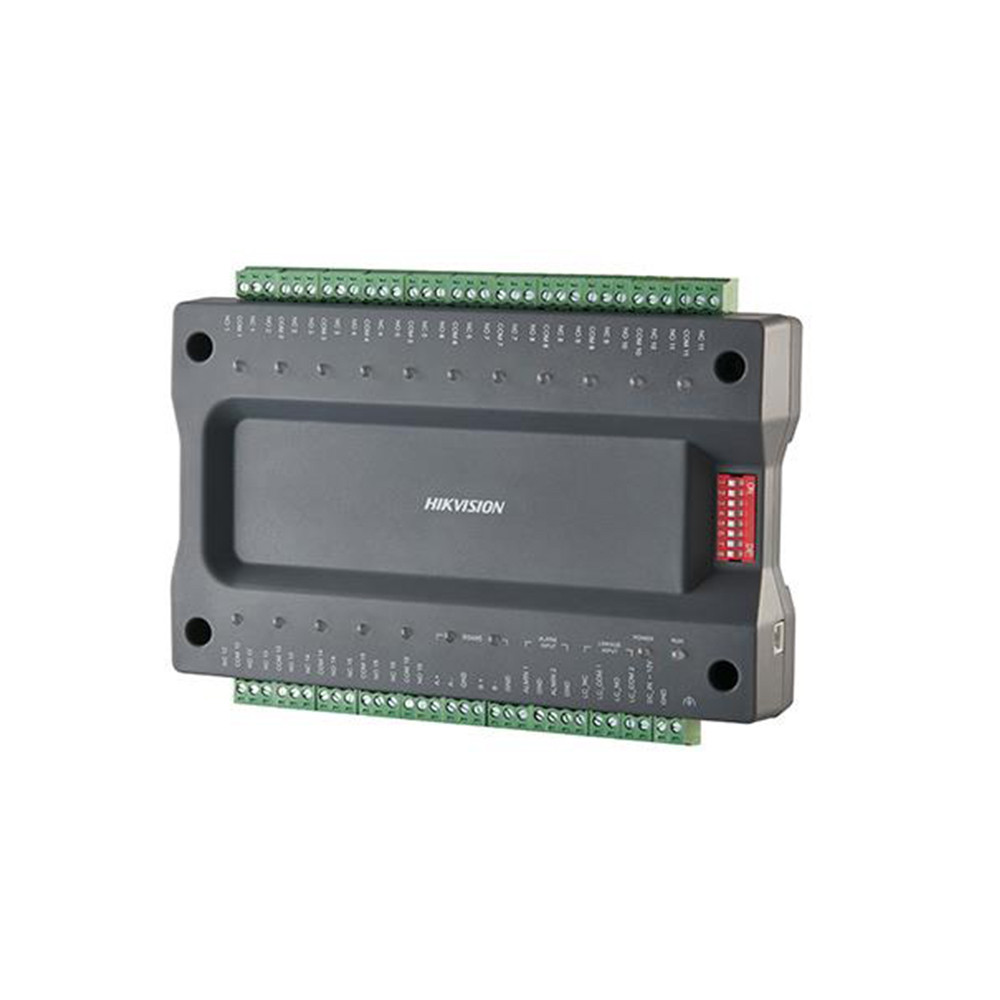

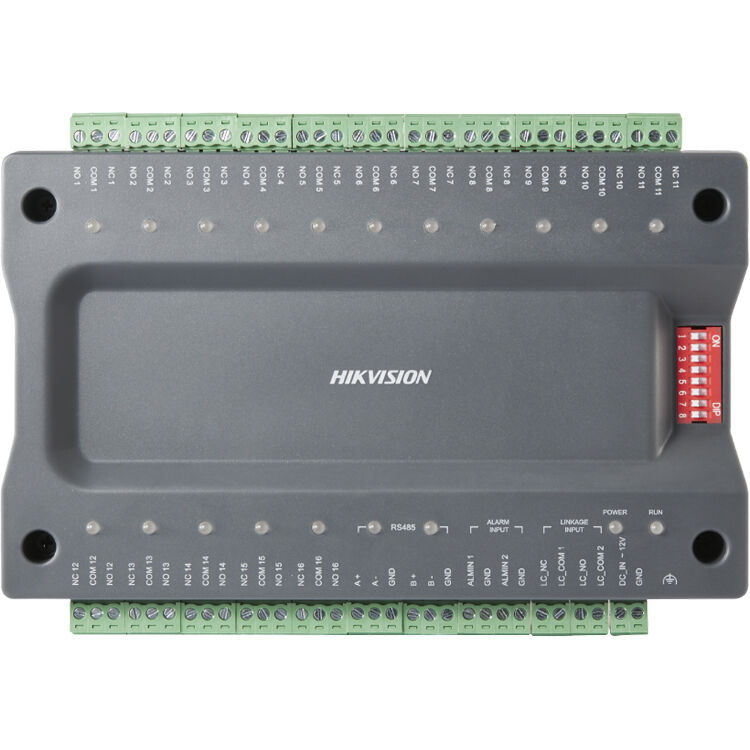

Hikvision DS-K2M0016A Elevator Sub-Controller

http://www.techcore.com.ph/web/image/product.template/213/image_1920?unique=2a0bb2b

• Distributed elevator controller
• Connectable with up to 16 relays to control floor buttons in the elevator
• RS-485 communication with the master elevator controller
• DIP switch settings for device address and relay types
• Up to 8 distributed elevator controllers can be linked to the master elevator controller
• Control the elevator via the relay

This combination does not exist.

Contact Us
Hikvision Access Control Elevator Controller



Product Specification


RS-485 Interface 2
Alarm Input 2
Relay Output 16
Buzzer 1
Working Temperature -40°F to 158°F
Working Humidity 0% to 90% (No Condensation)
Power Supply 12 VDC±15%
Installation Guide Rail Installation
Tamper-Proof 1
Dimensions 167(L)mm*105(W)mm*30(H)mm
Processor 32 bit
