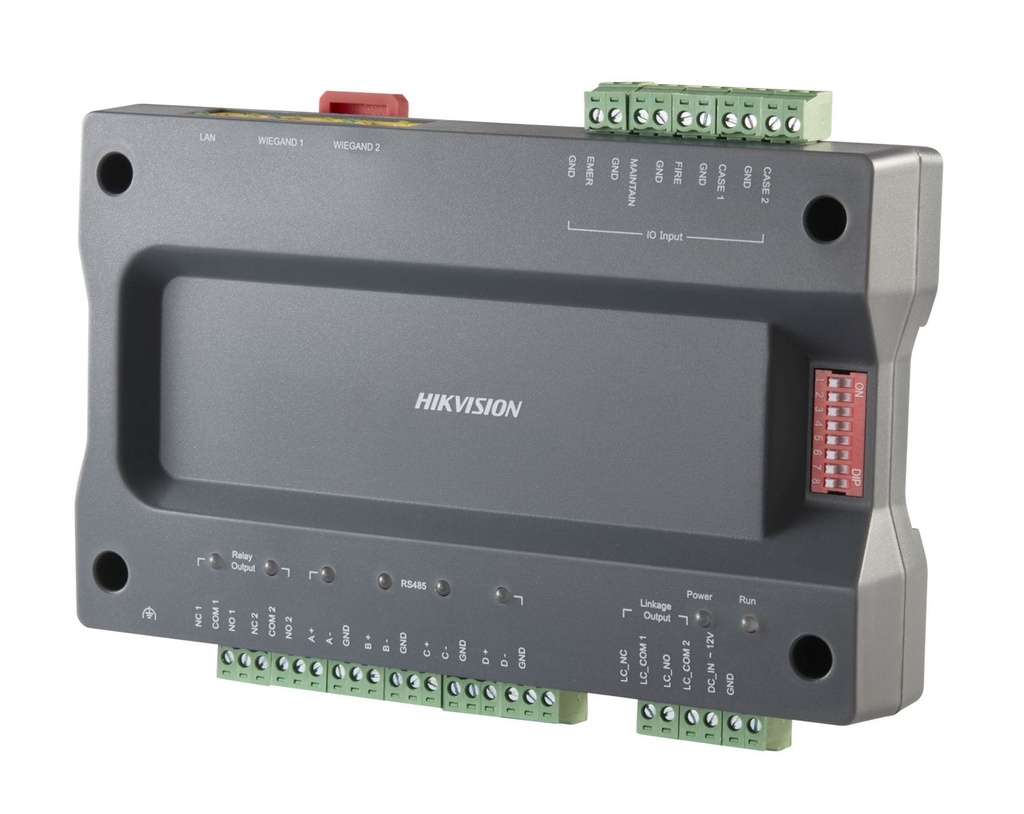

Hikvision DS-K2210 Elevator Master Controller

• Master elevator controller
• Control 128 floors' permissions
• 20,000 cards and 50,000 events storage
• Uplink Communication: TCP/IP and RS-485
• Multiple authentication modes
• Configure and manage device via web client and client software
• Watchdog and tamper-proof function
• Accessible Card Reader: 2 Wiegand readers or 2 RS485 readers

Hikvision Access Control Elevator Controller
0.00 ₱ 0.00 ₱

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Product Specification


Communication TCP/IP;RS-485, and Wiegand
Input Interface 1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button
Output Interface 5 Relay Outputs
Internal Clock Support
RTC Support
Working Temperature -40°F to 158°F
Working Humidity 0% to 90% (No Condensation)
Power Supply 12 VDC±15%
Installation Guide Rail Installation
Dimensions 167(L)mm*105(W)mm*30(H)mm
Processor 32 bit
Indicator Power On: Solid Green,Running Properly: Flashing Green,Running Exception: Solid Red,Serial Port Not Communicating: Off,Serial Port Communicating: Solid Green,Relay NC: Off,Relay NO: Solid Green,Network Disconnected: Off,Network Cable Connected: Solid Yellow, Flashing Green,Network Armed: Solid Yellow, Flashing Green,
Card Reader Up to 2 RS-485 Card Readers or 2 Wiegand Card Readers



Download Center


Datasheet

Quick Start Guide

User Manual
