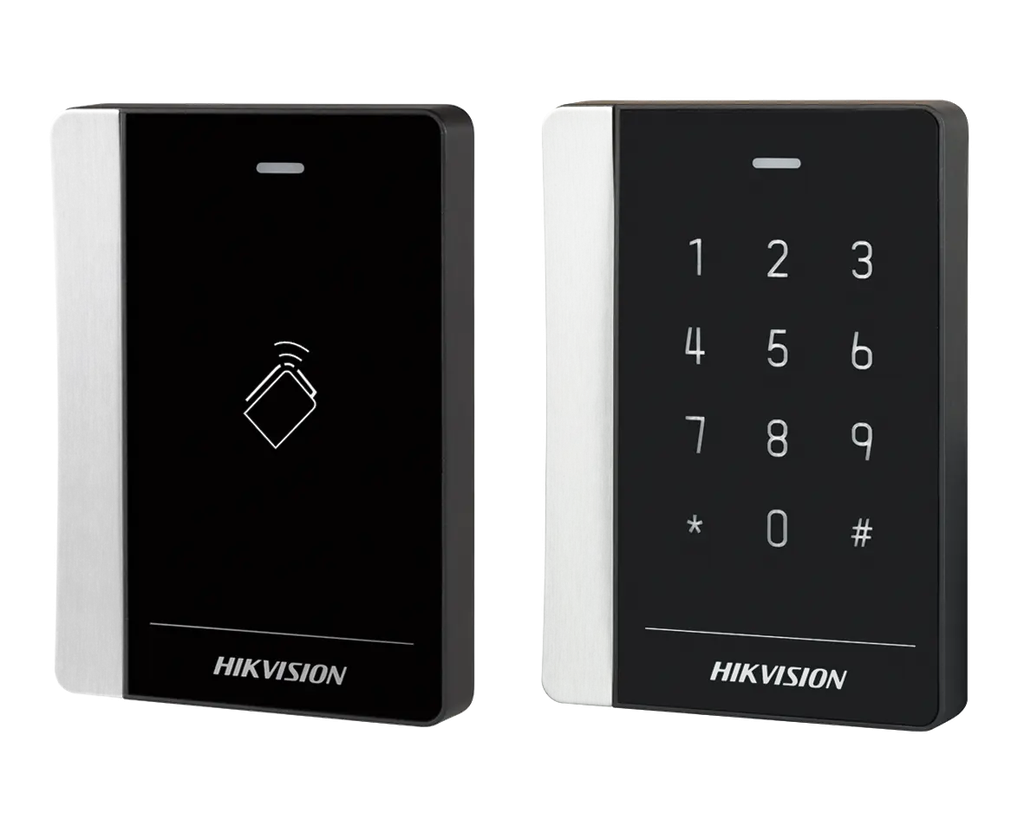

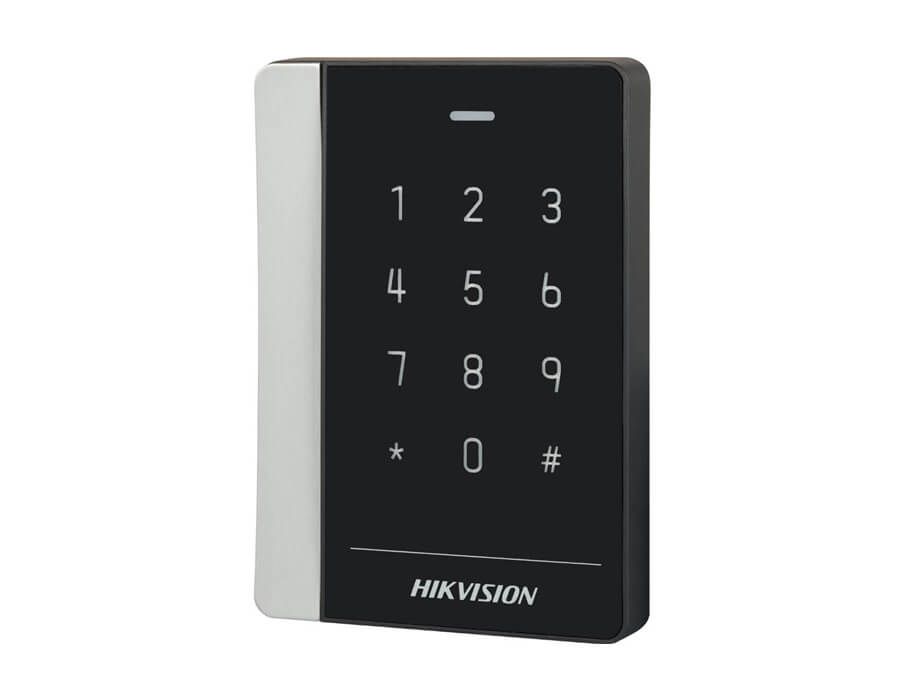

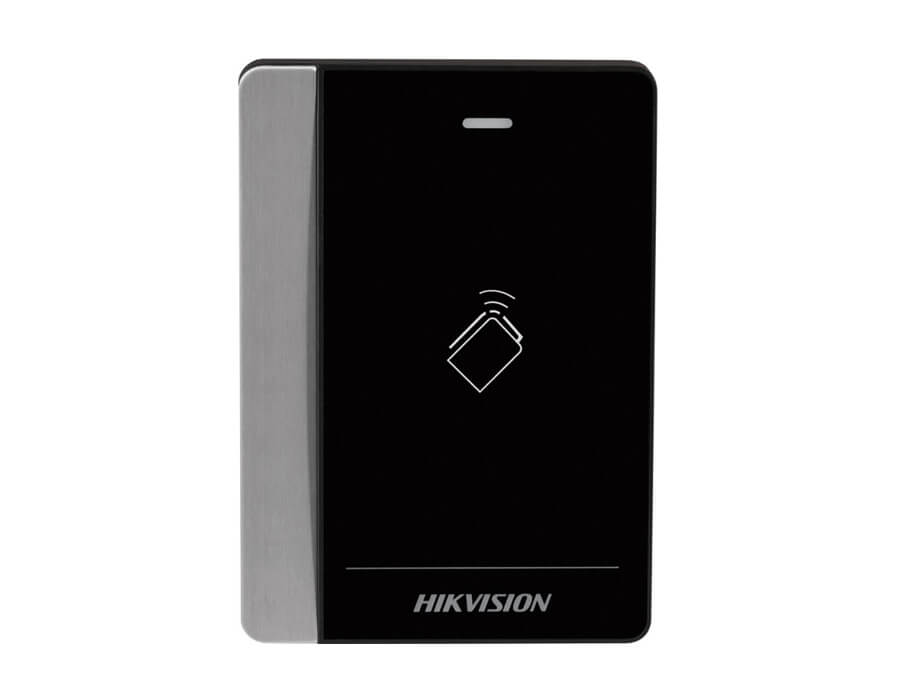

Hikvision DS-K1102 Card Reader

Hikvision DS-K1102 Card Reader

• Mifare1/ EM card reader
• PC+ABS material shell with PMMA panel design
• Built-in audible beeper
• RS-485 and Wiegand interface
• IP64

This combination does not exist.

Pro Series Hikvision Access Terminal Access Control

Product Specification

Power Supply	12V DC
Working Temperature	-20°C to +65°C (-4°F to +149°F)
Working Humidity	10% to 90% (Non Condensing)
Working Current	≤500mA
Reading Frequency	125KHz
Reading Range	≤50mm (≤1.97")
ID Settings	via DIP Switch
Audio Alert	Beeper
Power Consumption	≤2W
Keypad	No Keypad (DS-K1102E/M)Keypad with 12 Keys (0 to 9, *, #) (DS-K1102EK/MK)
Certifications	FCC, CE
LED Indicator	Power Indicator; Status LED Indicator
Protection Level	IP 64
Dimensions	121mm × 86.5mm × 14mm (4.76” × 3.41” × 0.55")
Weight	≤0.14Kg
Installing Method	Applied for 86 & 120 Gang Box
Processor	32-bit
