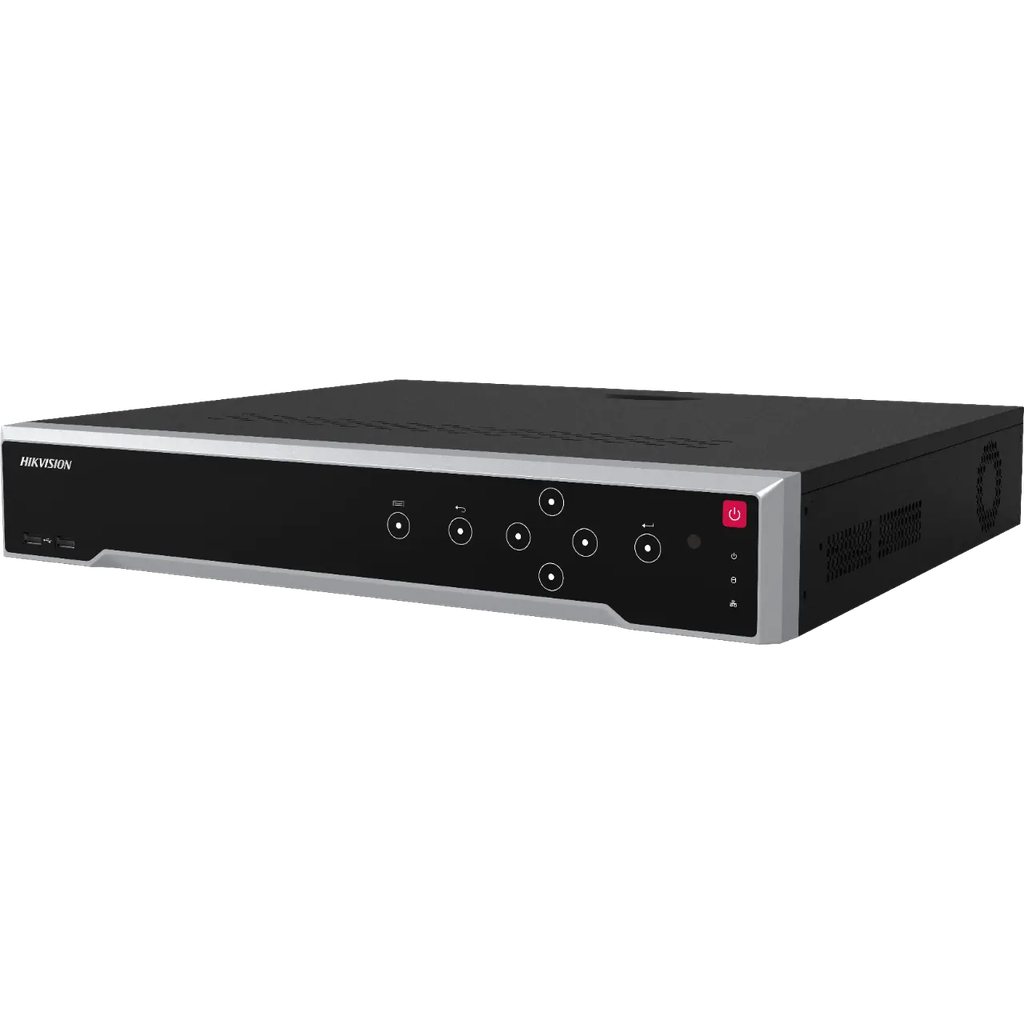

Hikvision DS-7732NI-K4/16P NVR
- All products
- NVR
- Hikvision DS-7732NI-K4/16P NVR
- NVR
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Product Specification
| IP Video Input | 32-ch |
| Incoming Bandwidtd | 256 Mbps |
| Outgoing Bandwidtd | 160 Mbps |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using tde audio input) |
| Decoding Format | H.265/ H.265+/H.264/H.264+ |
| Recording Resolution | 12MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| Decoding Capability | 1-ch@12MP (30fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) |
| Network Protocol | TCP/IP, DHCP, IPv4, Hik-Connect , DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Etdernet interface |
| PoE Interface | 16, RJ-45 10/100 Mbps self-adaptive Etdernet interface |
| Power | ≤ 200 W |
| Standard | IEEE 802.3 af/at |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| SATA | 4 SATA interfaces |
| Capacity | Up to 10TB capacity for each HDD |
| Alarm In/Out | 16/4（16/9 is optional） |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Power Supply | 100 to 240 VAC, 50 to 60Hz |
| Consumption | ≤ 20 W (witdout enabling PoE and HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10 to 90 % |
| Dimension (W × D × H) | 445 × 400 × 71 mm ( 17.5"× 15.7" × 2.8") |
| Weight | ≤ 5 kg (11lb.) |
| IP Video Input | 32-ch |
| Incoming Bandwidtd | 256 Mbps |
| Outgoing Bandwidtd | 160 Mbps |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using tde audio input) |
| Decoding Format | H.265/ H.265+/H.264/H.264+ |
| Recording Resolution | 12MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| Decoding Capability | 1-ch@12MP (30fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) |
| Network Protocol | TCP/IP, DHCP, IPv4, Hik-Connect , DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Etdernet interface |
| PoE Interface | 16, RJ-45 10/100 Mbps self-adaptive Etdernet interface |
| Power | ≤ 200 W |
| Standard | IEEE 802.3 af/at |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| SATA | 4 SATA interfaces |
| Capacity | Up to 10TB capacity for each HDD |
| Alarm In/Out | 16/4（16/9 is optional） |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Power Supply | 100 to 240 VAC, 50 to 60Hz |
| Consumption | ≤ 20 W (witdout enabling PoE and HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10 to 90 % |
| Dimension (W × D × H) | 445 × 400 × 71 mm ( 17.5"× 15.7" × 2.8") |
| Weight | ≤ 5 kg (11lb.) |
