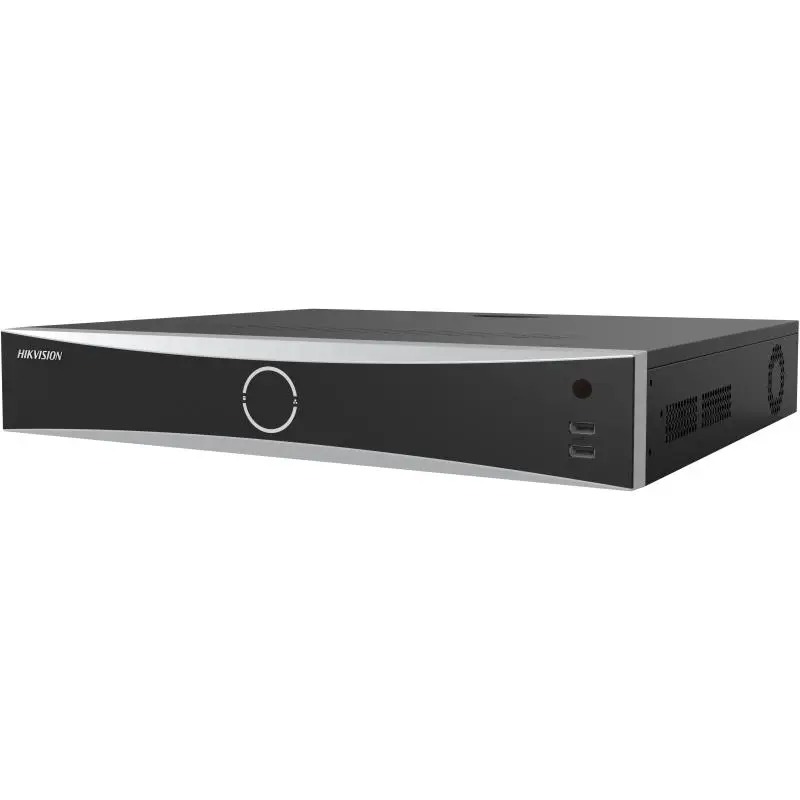

Hikvision DS-7716NXI-I4/16P/S 16-ch 1.5U 16 POE AcuSense 4K NVR
- All products
- NVR
- Hikvision DS-7716NXI-I4/16P/S 16-ch 1.5U 16 POE AcuSense 4K NVR
- NVR
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Facial Detection And Analytics | Face picture comparison, human face capture, face picture search |
| Face Picture Library | Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB) |
| Facial Detection And Analytics Performance | 1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265) |
| Face Picture Comparison | 4-ch face picture comparison alarm |
| Human/Vehicle Analysis | 16-ch |
| Human/Vehicle Analysis | Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; Up to 12 rules in total |
| IP Video Input | 16-ch Up to 12 MP resolution |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI 1 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output |
| HDMI 2 Output | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI1/VGA simultaneous output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Decoding Format | H.265+/H.265/H.264+/H.264/MPEG4 |
| Recording Resolution | 12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| Decoding Capability | 16-ch @ 1080p (30 fps) |
| Dual-Stream Recording | Support |
| Stream Type | Video, Video & Audio |
| Live View Window Division | 1/2/4/6/8/9/16 |
| Aux Port Window Division | 1/2/4/6/8/9/16 |
| Playback Mode | Normal/Smart, Event, Tag, Eternal File |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/MP2L2 |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 200 W |
| Standard | IEEE 802.3 af/at |
| Serial Interface | RS-485 (half-duplex), RS-232, Keyboard |
| SATA | 4 SATA interfaces supporting hot-plug |
| ESATA | 1 eSATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| Alarm In/Out | 16/4 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Total power: | ≤ 360 W |
| Consumption | ≤ 30 W (without HDD) |
| Working Temperature | -10 ℃ to 55 ℃ (14 ℉ to 131 ℉) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension (W × D × H) | 445 × 400 ×75 mm ( 17.5"× 15.7" × 3.0") |
| Weight | ≤ 7 kg (15.4 lb) (without HDD) |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
| Facial Detection And Analytics | Face picture comparison, human face capture, face picture search |
| Face Picture Library | Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB) |
| Facial Detection And Analytics Performance | 1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265) |
| Face Picture Comparison | 4-ch face picture comparison alarm |
| Human/Vehicle Analysis | 16-ch |
| Human/Vehicle Analysis | Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; Up to 12 rules in total |
| IP Video Input | 16-ch Up to 12 MP resolution |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI 1 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output |
| HDMI 2 Output | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI1/VGA simultaneous output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Decoding Format | H.265+/H.265/H.264+/H.264/MPEG4 |
| Recording Resolution | 12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| Decoding Capability | 16-ch @ 1080p (30 fps) |
| Dual-Stream Recording | Support |
| Stream Type | Video, Video & Audio |
| Live View Window Division | 1/2/4/6/8/9/16 |
| Aux Port Window Division | 1/2/4/6/8/9/16 |
| Playback Mode | Normal/Smart, Event, Tag, Eternal File |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/MP2L2 |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 200 W |
| Standard | IEEE 802.3 af/at |
| Serial Interface | RS-485 (half-duplex), RS-232, Keyboard |
| SATA | 4 SATA interfaces supporting hot-plug |
| ESATA | 1 eSATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| Alarm In/Out | 16/4 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Total power: | ≤ 360 W |
| Consumption | ≤ 30 W (without HDD) |
| Working Temperature | -10 ℃ to 55 ℃ (14 ℉ to 131 ℉) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension (W × D × H) | 445 × 400 ×75 mm ( 17.5"× 15.7" × 3.0") |
| Weight | ≤ 7 kg (15.4 lb) (without HDD) |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
