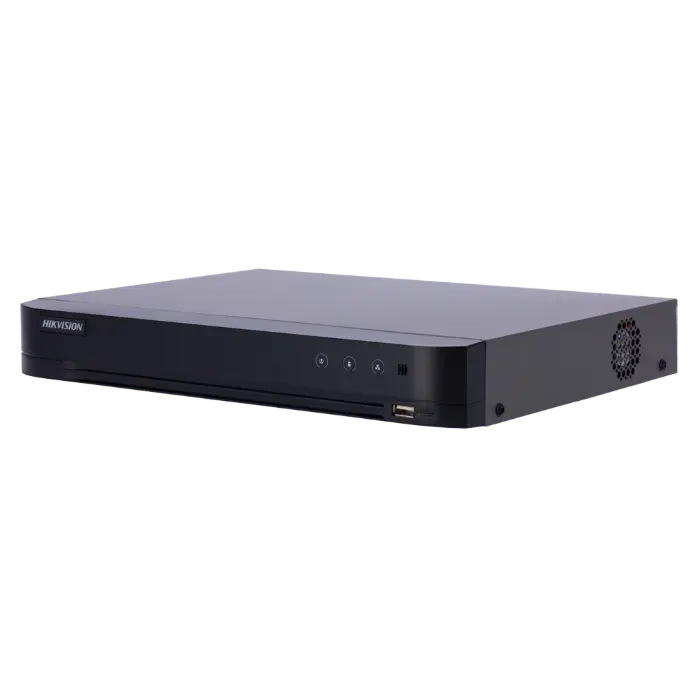

Hikvision IDS-7216HQHI-M1/XT DVR

Hikvision IDS-7216HQHI-M1/XT DVR

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video input
• Audio via coaxial cable
• Up to 18-ch IP camera inputs (up to 5 MP)
• Up to 1080p Lite@15 fps encoding capability
• Max. 1200 m for 720p HDTVI signal

DVR Value Series
0.00 ₱ 0.00 ₱


Contact Us

Product Specification


Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF; For 720p stream access: 720p/WD1/4CIF/VGA/CIF; For standard definition stream access: WD1/4CIF/VGA/CIF
Main stream For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps; For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps; For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream For 1080p and 720p stream access CIF/QVGA@15 fps; For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 4 Mbps
Dual-Stream Support
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
IP Video Input 2-ch (up to 18-ch) Up to 5 MP resolution; Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input 16-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input 1080p25, 1080p30, 720p25, 720p30
AHD Input 1080p25, 1080p30, 720p25, 720p30
HDCVI Input 1080p25, 1080p30, 720p25, 720p30
CVBS Input PAL/NTSC
HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI/VGA simultaneous output
Audio Input 1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback 16-ch
Network Total Bandwidth 96 Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection 128
Network Interface 1, RJ45 10M/100M self-adaptive Ethernet interface
SATA 1, SATA interface
Capacity Up to 10 TB capacity for each disk
USB Interface 2 × USB 2.0
Power Supply 12 VDC, 1.6 A
Consumption ≤ 10 W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight ≤ 1.1 kg (without HDD, 2.4 lb.)
