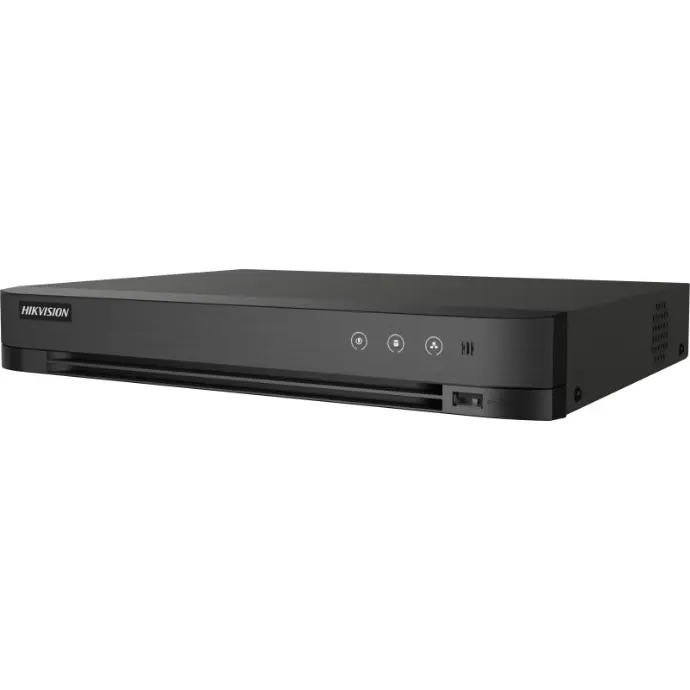

Hikvision IDS-7208HQHI-M1/XT DVR

Hikvision IDS-7208HQHI-M1/XT DVR

• 8 channels and 1 HDD 1U DVR
• Efficient H.265 pro+ compression technology
• Encoding ability up to 1080p @ 15 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 12 network cameras can be connected

DVR Pro Series
0.00 ₱ 0.00 ₱

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Product Specification


Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution When 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,
Frame Rate Main stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bit Rate 32 Kbps to 6 Mbps
Dual Stream Support
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bit Rate 64 Kbps
IP Video Input 4-ch (up to 12-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD Input 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input 1080p25, 1080p30, 720p25, 720p30
CVBS Input PAL/NTSC
Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback 8-ch
HDTVI Input 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.,
VGA/HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Remote Connections 64
Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface 1, RJ45 10M/100M self-adaptive Ethernet interface
SATA 1 SATA interface
Capacity Up to 10 TB capacity for each disk
Alarm In/Out N/A
USB Interface 2 × USB 2.0
Serial Interface RS-485 (half-duplex)
Power Supply 12 VDC
Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity 10% to 90%
Dimensions (W × D × H) 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weights (Without HDD) ≤ 1.78 kg (3.9 lb)
Consumption (Without HDD) ≤ 7.5 W



Download Center


Datasheet

Quick Start Guide

User Manual
