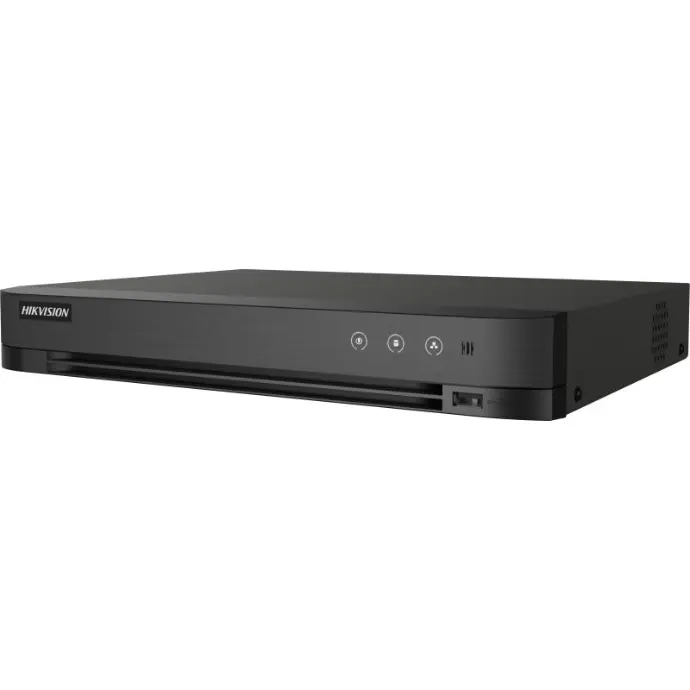

Hikvision IDS-7204HQHI-M1/XT DVR
- All products
- DVR
- Hikvision IDS-7204HQHI-M1/XT DVR
- DVR
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Product Specification
| Video Compression | H.264+/H.264 |
| Encoding Resolution | When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF,When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: ,When 1080p Lite mode not enabled:,For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled:,1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N), |
| Video Bit Rate | 32 Kbps to 4 Mbps |
| Dual Stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bit Rate | 64 Kbps |
| IP Video Input | 1-ch (up to 5-ch) Up to 960p resolution Support H.264+/H.264 IP cameras |
| Analog Video Input | 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| Turbo HD Input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | Support |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | Reuse the first audio input |
| Synchronous Playback | 4-ch |
| VGA/HDMI Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Remote Connections | 32 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| SATA | 1 SATA interface |
| Capacity | Up to 6 TB capacity for each disk |
| Alarm In/Out | N/A |
| USB Interface | Rear panel: 2 × USB 2.0 |
| Power Supply | 12 VDC |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Weights (Without HDD) | ≤ 1 kg (2.2 lb) |
| Consumption(Without HDD) | ≤ 8 W |
| Dimensions(W × D × H) | 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
| Video Compression | H.264+/H.264 |
| Encoding Resolution | When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF,When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: ,When 1080p Lite mode not enabled:,For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled:,1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N), |
| Video Bit Rate | 32 Kbps to 4 Mbps |
| Dual Stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bit Rate | 64 Kbps |
| IP Video Input | 1-ch (up to 5-ch) Up to 960p resolution Support H.264+/H.264 IP cameras |
| Analog Video Input | 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| Turbo HD Input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | Support |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | Reuse the first audio input |
| Synchronous Playback | 4-ch |
| VGA/HDMI Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Remote Connections | 32 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| SATA | 1 SATA interface |
| Capacity | Up to 6 TB capacity for each disk |
| Alarm In/Out | N/A |
| USB Interface | Rear panel: 2 × USB 2.0 |
| Power Supply | 12 VDC |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Weights (Without HDD) | ≤ 1 kg (2.2 lb) |
| Consumption(Without HDD) | ≤ 8 W |
| Dimensions(W × D × H) | 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
