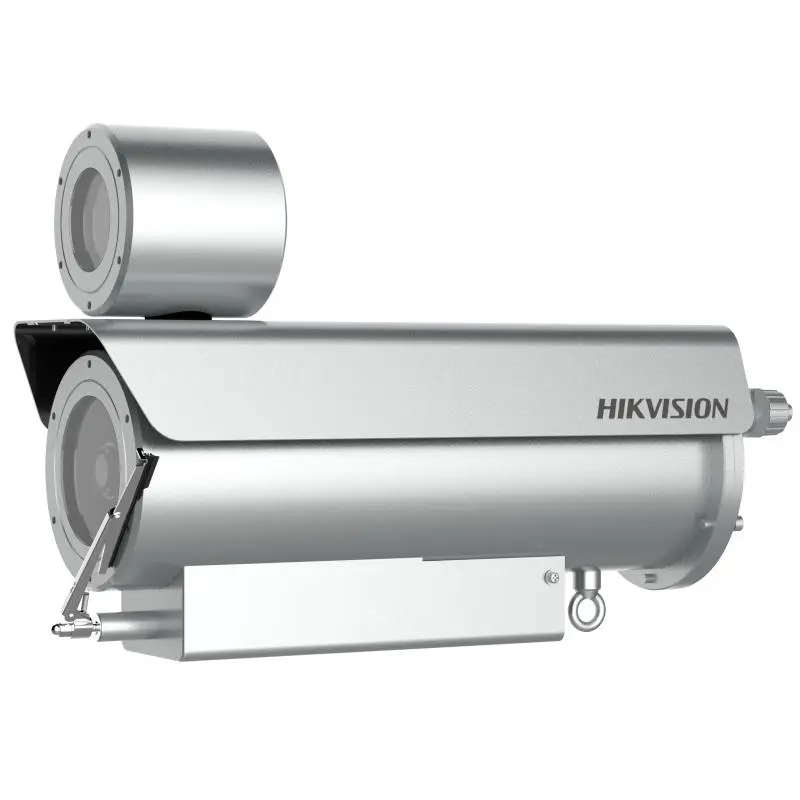

Hikvision DS-2XE6422FWD-IZHRS Explosion-proof Bullet Camera

http://www.techcore.com.ph/web/image/product.template/203/image_1920?unique=da06fa9

• EXIR Motorized Varifocal Bullet Explosion-Proof Network Camera
• Explosion-proof design: the camera has passed international ATEX & IECEx certifications, and can be used in gas and dust hazardous scenarios
• 316L stainless steel enclosure and anti-corrosion spray treatment, protecting the camera from damage caused by sparks or corrosive materials
• IP68 water resistant, preventing water ingress for outdoor use
• H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
• AC 100 V to 240 V wide range power supply: easy to deploy cables and safer compared to a power adapter solution

This combination does not exist.

Contact Us
Bullet Hikvision Special Equipment Explosion-proof



Product Specification


Image Sensor 1/1.8″ Progressive Scan CMOS
Min. Illumination Color: 0.0005 Lux @(F1.2, AGC ON); B/W: 0.0001 Lux @(F1.2, AGC ON), 0 Lux with IR
DNR 3D DNR
Day & Night IR cut filter
Lens 2.8 mm to 12 mm, F1.4, horizontal FOV: 94° to 38°, vertical FOV: 49.9° to 21.3°, diagonal
FOV 112.3° to 43.5°; 8 mm to 32 mm, F1.7,
horizontal field of view: 42.5° to 15.1°,
vertical FOV: 23.4° to 8.6°,
diagonal FOV: 49.6° to 17.3°
Auto-Iris DC drive
Shutter Speed 1/3s to 1/100,000s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Focus Auto, semi-auto, manual
Video Max. Resolution 1920 × 1080
Main Stream 50 Hz: 25fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60 Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
Video Compression Main stream: H.265/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264
Video Bit Rate 32 Kbps~8 Mbps
H.264 Type BaseLine Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Bit Rate Control VBR/CBR
Scalable Video Coding (SVC) H.265 and H.264 support
Region Of Interest (ROI) 1 fixed region for main stream and sub-stream
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI, SDK, Ehome
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS
User/Host Up to 32 users, 3 levels: administrator, operator and user
Network Storage microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE8+, Chrome41.0~44, Firefox30.0~51, Safari8.0~11, Plug-in free live view: Chrome45.0+, Firefox52.0+, Local service: Chrome 57.0+, Firefox 52.0+, Not recommended: Safari 11+, Edge
Audio I/O 1 line in/out
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Audio Type Mono sound
Smart Event Line crossing detection, up to 4 lines configurable, Intrusion detection, up to 4 regions configurable, Region entrance detection, up to 4 regions configurable, Region exiting detection, up to 4 regions configurable, Unattended baggage detection, up to 4 regions configurable, Object removal detection, up to 4 regions configurable, Scene change detection, defocus detection, Exception Detection, Network disconnected, IP address conflict, illegal login, HDD full, HDD error
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Smart IR The IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure.
Day/Night Switch Day/Night/Auto/Schedule
Target Cropping Yes
Image Enhancement BLC, HLC, 3D DNR, Defog, EIS
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
SNR ≥50db
Privacy Mask Yes
Communication Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Alarm 2 alarm inputs, 2 alarm outputs (up to 24 VDC, 1 A or 110 VAC, 500 mA)
Video Output 1Vp-p Composite Output (75Ω/BNC)
On-Board Storage Built-in microSD/SDHC/SDXC slot, up to 256GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Approval EMC:
FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B）;
CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013）;
IC: IC-VoC(ICES-003 Issue 7:2020);
KC: KN 301489-1,KN 301489-17,RRA NOTICE 2017-14(2017.12.05),RRA NOTICE 2017-19(2017.12.28);

Safety
CB: IEC 60950-1;
CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013;
LOA: SANS IEC60950-1;

Chemistry:
CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)IR
IR Range 2.8 mm to 12 mm lens: up to 80 m (262.5 ft.), 8 mm to 32 mm lens: up to 150 m (492.1 ft.)
Smart Feature-Set Line Crossing Detection, Cross a pre-defined virtual line, Intrusion Detection, Enter and loiter in a pre-defined virtual region, Behavior Analysis, Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, Region Entrance: Enter a pre-defined virtual region from the outside place, Region Exit: Exit from a pre-defined virtual region, Unattended Baggage, Objects left over in the pre-defined region such as the baggage, purse, dangerous materials, Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Power Supply 100 VAC to 240 VAC, three-core terminal block,
PoE (802.3at, class 4)
Material 316L+Anti-corrosion coating
Dimensions 513.2 × 169 × 308 mm (20.2"× 6.65\" × 12.13\")
Package 753 × 313 × 424 mm (29.65 × 12.32\" × 16.69\")
Linkage Method Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
Weight 17.8 kg (39.24 lb.); with package, 19.8 kg (43.65lb.)
Power Consumption 100 VAC to 240 VAC, 0.38 A to 0.18 A, max. 22.6W; PoE (802.3at, 42.5 V to 57 V), 0.56 A to 0.42 A, max. 23.6W
Heater Yes
Wiper Yes
Explosion-Proof Certificate ATEX: II 2 G Ex db op is IIC T6 Gb/ II 2D Ex tb op is IIIC T80°C Db, IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db.

Note:
For explosive gas atmospheres, the maximum surface temperature is 85°C;
For flammable dust atmospheres, the maximum surface temperature is 80°C;
IIC: for explosive gas atmospheres other than mines susceptible to firedamp;
For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
Online Upgrade Yes
Firmware Version 5.5.153
General Function Anti- flicker, 3 streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Software Reset Yes
