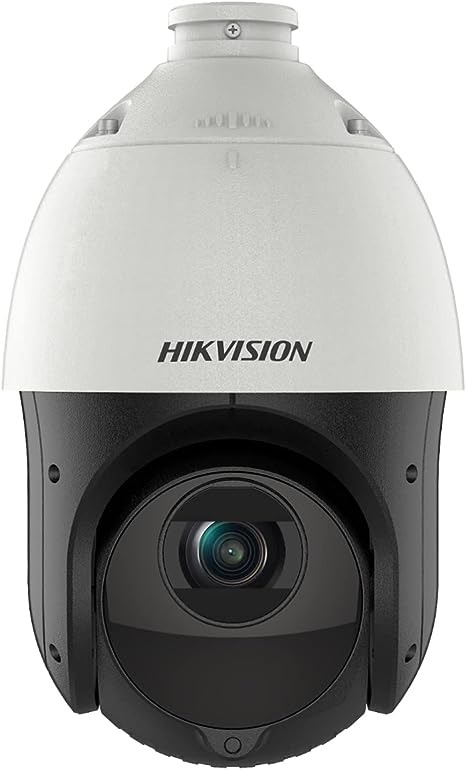

Hikvision DS-2DE4425IW-DE 4 MP 25X Powered by DarkFighter IR Network Speed Dome
- All products
- IP Cameras
- Hikvision DS-2DE4425IW-DE 4 MP 25X Powered by DarkFighter IR Network Speed Dome
- IP Cameras
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| FOV | Horizontal field of view: 59.5° to 2.6° (Wide-Tele),Vertical field of view: 35.7° to 1.5° (Wide-Tele),Diagonal field of view: 66.6 to 3.0 (Wide-Tele) | |
| Zoom Speed | Approx. 3.6 s (optical lens, wide-tele) | |
| Working Distance | 10 mm to 1500 mm (wide-tele) | |
| Aperture Range | F1.6 to F3.5 | |
| Focal Length | 4.8 mm to 120 mm, 25× optical zoom | |
| Image Enhancement | HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus | |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) | |
| Max. Resolution | 2560 × 1440 | |
| Main Stream | 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) | |
| Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour | |
| API | Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform | |
| Simultaneous Live View | Up to 20 channels | |
| User/Host | Up to 32 users,3 levels: Administrator, Operator and User | |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect | |
| Web Browser | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 | |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering | |
| Audio Input | 1-ch audio input | |
| Audio Output | 1-ch audio output | |
| Network Interface | 1 RJ45 10 M/100 M Ethernet, PoE+ (802.3 at, class4) | |
| H.264+ | Support | |
| H.265+ | Support | |
| H.264 Type | Baseline Profile/Main Profile/High Profile | |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG | |
| H.265 Type | Baseline Profile/Main Profile/High Profile | |
| Video Bitrate | 32 Kbps to 16384 Kbps | |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM | |
| Audio Bitrate | G.711alaw/G.711ulaw: 64 Kbps,G.722.1/G.726: 16 Kbps,MP212/PCM: 32 Kbps/64 Kbps/128 Kbps | |
| SVC | Support | |
| Image Sensor | 1/2.5" progressive scan CMOS | |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001Lux @(F1.6, AGC ON),0 Lux with IR | |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp | |
| Gain | Auto/Manual | |
| Shutter Time | 50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s | |
| Day & Night | IR Cut Filter | |
| Digital Zoom | 16× | |
| Privacy Mask | 24 programmable privacy masks | |
| Focus Mode | Auto/Semi-automatic/Manual | |
| WDR | 120 dB WDR (not supported by full frame rate) | |
| IR Distance | 100 m | |
| Smart IR | Support | |
| Movement Range (Pan) | 360° endless | |
| Pan Speed | Configurable, from 0.1°/s to 80°/s, ,Preset speed: 80°/s | |
| Movement Range (Tilt) | From -15° to 90° (auto-flip) | |
| Tilt Speed | Configurable, from 0.1°/s to 80°/s,Preset Speed: 80°/s | |
| Proportional Zoom | Support | |
| Presets | 300 | |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol | |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan | |
| Power-Off Memory | Support | |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan | |
| 3D Positioning | Support | |
| PTZ Status Display | Support | |
| Preset Freezing | Support | |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output | |
| Basic Event Detection | Motion Detection, Video Tampering Detection, Exception | |
| Smart Detection | Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection | |
| Smart Record | ANR (Automatic Network Replenishment), Dual-VCA | |
| ROI | Main stream, sub-stream and third stream respectively support four fixed areas. | |
| Material | ADC 12, PC+10% GF | |
| Dimensions | Φ 164.5 mm × 290 mm (Φ 6.48" × 11.42") | |
| Weight | Approx. 2 kg (4.41 lb) | |
| Protection Level | IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection | |
| Power | 12 VDC, 2.0 A and PoE (802.3 at), 42.5 to 57 VDC, 0.6 A, class4 Max.: 18 W, including max. 7W for IR | |
| Working Temperature | -30°C to 65°C (-22°F to 149°F) | |
| Working Humidity | ≤ 90% |
| FOV | Horizontal field of view: 59.5° to 2.6° (Wide-Tele),Vertical field of view: 35.7° to 1.5° (Wide-Tele),Diagonal field of view: 66.6 to 3.0 (Wide-Tele) | |
| Zoom Speed | Approx. 3.6 s (optical lens, wide-tele) | |
| Working Distance | 10 mm to 1500 mm (wide-tele) | |
| Aperture Range | F1.6 to F3.5 | |
| Focal Length | 4.8 mm to 120 mm, 25× optical zoom | |
| Image Enhancement | HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus | |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) | |
| Max. Resolution | 2560 × 1440 | |
| Main Stream | 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) | |
| Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour | |
| API | Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform | |
| Simultaneous Live View | Up to 20 channels | |
| User/Host | Up to 32 users,3 levels: Administrator, Operator and User | |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect | |
| Web Browser | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 | |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering | |
| Audio Input | 1-ch audio input | |
| Audio Output | 1-ch audio output | |
| Network Interface | 1 RJ45 10 M/100 M Ethernet, PoE+ (802.3 at, class4) | |
| H.264+ | Support | |
| H.265+ | Support | |
| H.264 Type | Baseline Profile/Main Profile/High Profile | |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG | |
| H.265 Type | Baseline Profile/Main Profile/High Profile | |
| Video Bitrate | 32 Kbps to 16384 Kbps | |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM | |
| Audio Bitrate | G.711alaw/G.711ulaw: 64 Kbps,G.722.1/G.726: 16 Kbps,MP212/PCM: 32 Kbps/64 Kbps/128 Kbps | |
| SVC | Support | |
| Image Sensor | 1/2.5" progressive scan CMOS | |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001Lux @(F1.6, AGC ON),0 Lux with IR | |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp | |
| Gain | Auto/Manual | |
| Shutter Time | 50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s | |
| Day & Night | IR Cut Filter | |
| Digital Zoom | 16× | |
| Privacy Mask | 24 programmable privacy masks | |
| Focus Mode | Auto/Semi-automatic/Manual | |
| WDR | 120 dB WDR (not supported by full frame rate) | |
| IR Distance | 100 m | |
| Smart IR | Support | |
| Movement Range (Pan) | 360° endless | |
| Pan Speed | Configurable, from 0.1°/s to 80°/s, ,Preset speed: 80°/s | |
| Movement Range (Tilt) | From -15° to 90° (auto-flip) | |
| Tilt Speed | Configurable, from 0.1°/s to 80°/s,Preset Speed: 80°/s | |
| Proportional Zoom | Support | |
| Presets | 300 | |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol | |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan | |
| Power-Off Memory | Support | |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan | |
| 3D Positioning | Support | |
| PTZ Status Display | Support | |
| Preset Freezing | Support | |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output | |
| Basic Event Detection | Motion Detection, Video Tampering Detection, Exception | |
| Smart Detection | Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection | |
| Smart Record | ANR (Automatic Network Replenishment), Dual-VCA | |
| ROI | Main stream, sub-stream and third stream respectively support four fixed areas. | |
| Material | ADC 12, PC+10% GF | |
| Dimensions | Φ 164.5 mm × 290 mm (Φ 6.48" × 11.42") | |
| Weight | Approx. 2 kg (4.41 lb) | |
| Protection Level | IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection | |
| Power | 12 VDC, 2.0 A and PoE (802.3 at), 42.5 to 57 VDC, 0.6 A, class4 Max.: 18 W, including max. 7W for IR | |
| Working Temperature | -30°C to 65°C (-22°F to 149°F) | |
| Working Humidity | ≤ 90% |
