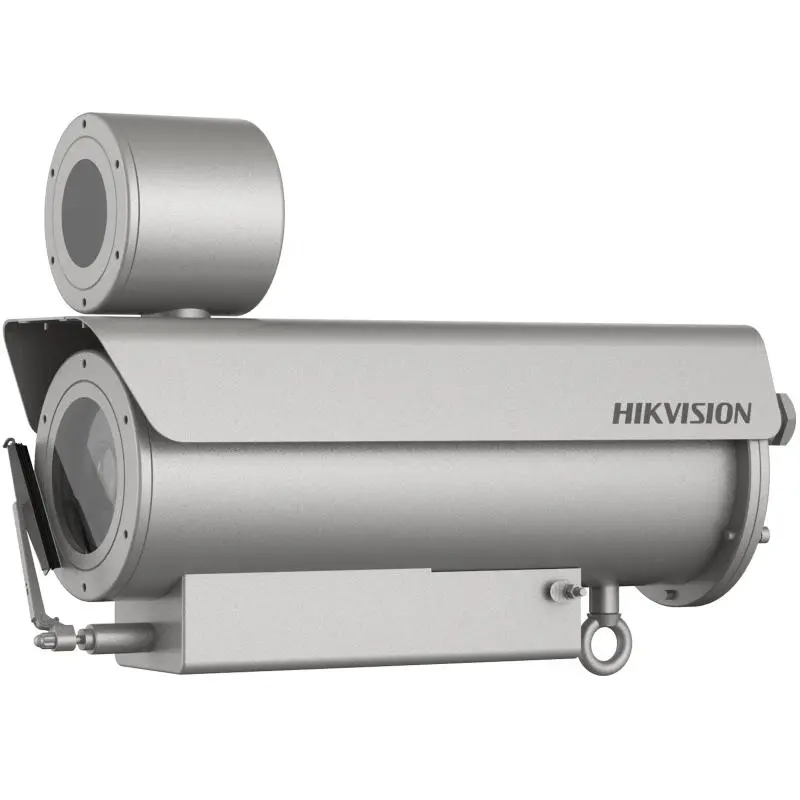

Hikvision DS-2DB4236I-CWX Explosion-proof Bullet Camera
- All products
- Special Equipment
- Hikvision DS-2DB4236I-CWX Explosion-proof Bullet Camera
- Special Equipment
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Product Specification
| Image Sensor | 1/1.8" progressive scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | color: 0.0005 Lux @ (F1.2，AGC ON) B/W: 0.0001 Lux @ (F1.2, AGC ON) ,0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30000 s |
| Day & Night | ICR |
| Zoom | 36 × optical, 12 × digital |
| Slow Shutter | yes |
| Focal Length | 6.0 to 216 mm, 36 × optical |
| FOV | Horizontal field of view: 59° to 1.98° (wide-tele);
Vertical field of view: 34.16° to1.12° (wide-tele); Diagonal field of view: 67.1° to 2.3° (wide-tele) |
| Focus | Auto/Semi-automatic/Manual |
| Aperture | F1.2 |
| Zoom Speed | approx. 4.6 s |
| Supplement Light Type | IR |
| Supplement Light Range | 200 m |
| Smart Supplement Light | yes |
| IR Wavelength | 850 nm |
| PTZ Park Action | yes |
| Scheduled Task | Preset |
| Power-Off Memory | yes |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16384 Kbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | Support |
| Region Of Interest (ROI) | 8 fixed regions for each stream |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2,PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | yes |
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Smooth Streaming | yes |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect |
| Web Browser | IE11, Chrome 57+, Firefox 52+, Safari 11+ |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | auto |
| Wide Dynamic Range (WDR) | 120 dB WDR |
| SNR | ≥52dB |
| Defog | Optical defog |
| Image Enhancement | HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Ethernet Interface | 1 RJ45 10 M/100 M Ethernet |
| On-Board Storage | support microSD/microSDHC/microSDXC cards, up to 256 GB |
| Audio | 1-ch audio input and 1-ch audio output |
| Alarm | 1-ch alarm input and 1-ch alarm output |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Basic Event | Motion detection, video tampering alarm, exception, alarm input and output |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
| Alarm Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording |
| Face Capture | 1. Detects up to 10 faces simultaneously, 2. Uploads face with background and closed-up face pictures, 3. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face |
| Power | 100 VAC to 240 VAC & PoE+ (IEEE802.3at class4) Max. 25 W |
| Dimension | 513.2 × 169 × 308 mm (20.2"× 6.65" × 12.13") |
| Weight | 19.8 kg (43.66 lb.) |
| Material | SUS316L with anti-corrosion surface spray treatment |
| Operating Condition | -40°C to 60°C (-40°F to 140°F)，Working Humidity≤ 90% |
| General Function | Anti-flicker, heartbeat, mirror, flash log, password reset via e-mail, pixel counter, password protection, one-key reset, three streams |
| Wiper | yes |
| Approval | EMC:
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015); Safety: UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1); Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006); Protection: IP68, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection; Explosion-Proof Protection: Ex-mark: ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db; ECEx: Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db |
| Image Sensor | 1/1.8" progressive scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | color: 0.0005 Lux @ (F1.2，AGC ON) B/W: 0.0001 Lux @ (F1.2, AGC ON) ,0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30000 s |
| Day & Night | ICR |
| Zoom | 36 × optical, 12 × digital |
| Slow Shutter | yes |
| Focal Length | 6.0 to 216 mm, 36 × optical |
| FOV | Horizontal field of view: 59° to 1.98° (wide-tele);
Vertical field of view: 34.16° to1.12° (wide-tele); Diagonal field of view: 67.1° to 2.3° (wide-tele) |
| Focus | Auto/Semi-automatic/Manual |
| Aperture | F1.2 |
| Zoom Speed | approx. 4.6 s |
| Supplement Light Type | IR |
| Supplement Light Range | 200 m |
| Smart Supplement Light | yes |
| IR Wavelength | 850 nm |
| PTZ Park Action | yes |
| Scheduled Task | Preset |
| Power-Off Memory | yes |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16384 Kbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | Support |
| Region Of Interest (ROI) | 8 fixed regions for each stream |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2,PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | yes |
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Smooth Streaming | yes |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect |
| Web Browser | IE11, Chrome 57+, Firefox 52+, Safari 11+ |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | auto |
| Wide Dynamic Range (WDR) | 120 dB WDR |
| SNR | ≥52dB |
| Defog | Optical defog |
| Image Enhancement | HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Ethernet Interface | 1 RJ45 10 M/100 M Ethernet |
| On-Board Storage | support microSD/microSDHC/microSDXC cards, up to 256 GB |
| Audio | 1-ch audio input and 1-ch audio output |
| Alarm | 1-ch alarm input and 1-ch alarm output |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Basic Event | Motion detection, video tampering alarm, exception, alarm input and output |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
| Alarm Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording |
| Face Capture | 1. Detects up to 10 faces simultaneously, 2. Uploads face with background and closed-up face pictures, 3. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face |
| Power | 100 VAC to 240 VAC & PoE+ (IEEE802.3at class4) Max. 25 W |
| Dimension | 513.2 × 169 × 308 mm (20.2"× 6.65" × 12.13") |
| Weight | 19.8 kg (43.66 lb.) |
| Material | SUS316L with anti-corrosion surface spray treatment |
| Operating Condition | -40°C to 60°C (-40°F to 140°F)，Working Humidity≤ 90% |
| General Function | Anti-flicker, heartbeat, mirror, flash log, password reset via e-mail, pixel counter, password protection, one-key reset, three streams |
| Wiper | yes |
| Approval | EMC:
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015); Safety: UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1); Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006); Protection: IP68, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection; Explosion-Proof Protection: Ex-mark: ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db; ECEx: Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db |
