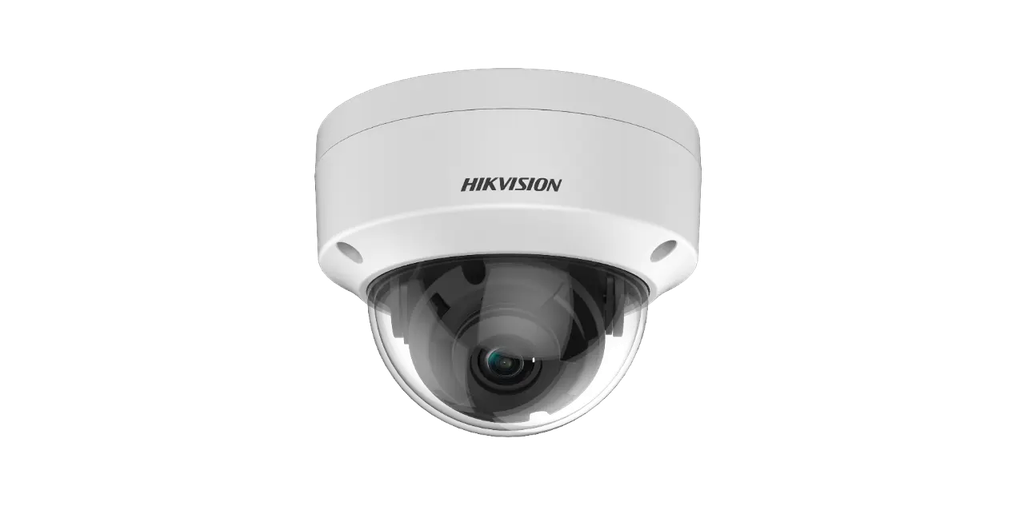

Hikvision DS-2CE57H0T-VPITF(C) Dome Camera

Hikvision DS-2CE57H0T-VPITF(C) Dome Camera

• 5 MP Vandal Fixed Dome Camera
• 5 MP dome camera
• EXIR 2.0: advanced infrared technology with 20 m IR distance
• Water and dust resistant (IP67) and vandal proof (IK10)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

This combination does not exist.

Analog HD Camera Dome Value Series Hikvision

Product Specification

Image Sensor	5 MP CMOS image sensor
Signal System	PAL/NTSC
Frame Rate	TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps; AHD: 5M@20fps, 4M@30fps, 4M@25fps; CVI: 4M@30fps, 4M@25fps; CVBS: PAL/NTSC	Resolution: 2560 (H) × 1944 (V)
Min. Illumination	Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Lens	2.8 mm, 3.6 mm, 6 mm fixed lens
Horizontal Field Of View	2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°; 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°; 6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°
Lens Mount	M12
Day & Night	ICR
WDR (Wide Dynamic Range)	Digital WDR
Angle Adjustment	Pan: 0 to 355°, Tilt: 0 to 75°, Rotation 0 to 355°
Image Mode	STD/HIGH-SAT
AGC	Support
Day/Night Mode	Auto/Color/BW (Black and White)
White Balance	ATW/MANUAL
HLC	Yes
BLC (Backlight Compensation)	Yes
Language	English
Functions	Brightness, Sharpness, DNR, Mirror, Smart IR
Video Output	TVI/AHD/CVI/CVBS
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply	12 VDC ±25%
Power Consumption	Max. 4.3 W
Protection Level	IP67 IK10
Material	Metal
IR Range	Up to 20 m
Communication	HIKVISION-C
Dimensions	Φ 100.4 mm × 82.4 mm (Φ 4" × 3.2")
Weight	Approx. 362 g (0.80 lb.)
