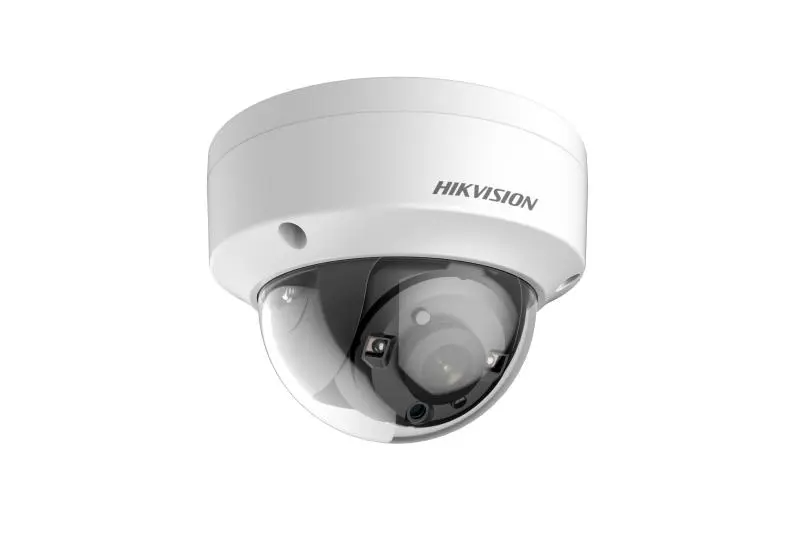

Hikvision DS-2CE56D8T-VPITF Dome Camera

Hikvision DS-2CE56D8T-VPITF Dome Camera

• 2 MP Ultra Low Light Vandal Fixed Dome Camera
• 2 MP high performance dome camera
• Strong night performance, capturing images in ultra-low light down to 0.003 lux
• Clear imaging even against strong back lighting due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• EXIR 2.0: advanced infrared technology with 30 m IR distance
• Water and dust resistant (IP67) and vandal proof (IK10)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

This combination does not exist.

Analog HD Camera Dome Pro Series Hikvision

Product Specification

Image Sensor	2 MP CMOS
Max. Resolution	1920 (H) × 1080 (V)
Min. Illumination	Color: 0.003 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day & Night	ICR
Angle Adjustment	Pan: 0° to 355°, Tilt:0° to 75°, Rotate: 0° to 355°
Signal System	PAL/NTSC
Lens Type	2.8 mm, 3.6 mm, 6 mm fixed focal lens
Focal Length & FOV	104° (2.8 mm), 79.1° (3.6 mm), 50.2° (6 mm)
Lens Mount	M12
Image Parameters Switch	STD/HIGH-SAT
Image Settings	Brightness, Sharpness, Mirror, Smart IR, HLC
Frame Rate	PAL: 1080p@25fps; NTSC: 1080p@30fps
Day/Night Mode	Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)	≥ 130 dB
Image Enhancement	Yes
White Balance	ATW/MANUAL
AGC	Support
Video Output	Switchable TVI/AHD/CVI/CVBS
Material	Metal
Dimension	Ø 110.8 mm × 84.7 mm (Ø 4.4" × 3.3")
Weight	Approx. 492 g (1.08 lb.)
Operating Condition	-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
Communication	Up the coax, Protocol: HIKVISION-C (TVI output)
Language	English
Power Supply	12 VDC ± 25%
Consumption	Max. 3.4 W
IR Range	Up to 30 m
Approval	Protection: IP67 IK10
