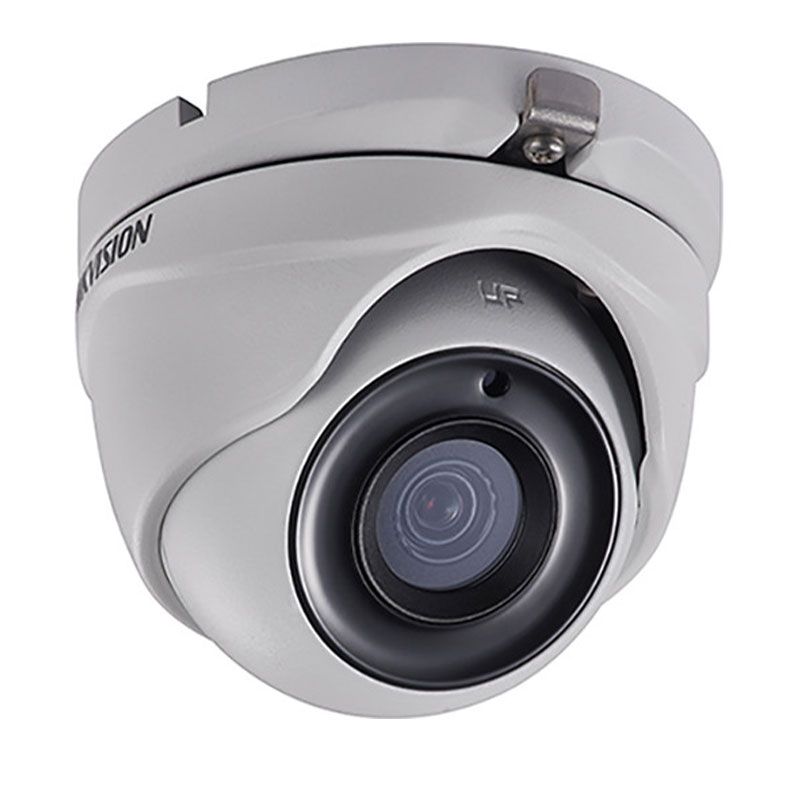

Hikvision DS-2CE56D8T-ITMF Turret Camera

http://www.techcore.com.ph/web/image/product.template/34/image_1920?unique=230489d

• 2 Megapixel high-performance CMOS
• Analog HD output, up to 1080P resolution
• True Day/Night
• OSD menu, DNR, Smart IR
• True WDR, up to 120dB
• EXIR technology, up to 20/40m IR distance
• IP66 weatherproof
• Up the Coax(HIKVISION-C)

This combination does not exist.

Contact Us
Analog HD Camera Turret Pro Series Hikvision



Product Specification


Image Sensor: 2MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 1920(H)*1080(V)
Min. Illumination: Color: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens: 2.8 mm, 3.6 mm, 6 mm fixed focal lens
Lens Mount: M12
Adjustment Range: Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120dB
Video Frame Rate: 1080p@25fps/1080p@30fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
Up the Coax: Support
White Balance: Auto/MWB
BLC: Support
AGC: Support
Language: English/Chinese
Function: Brightness, Sharpness, Mirror, Smart IR
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply: 12 VDC±25%
Power Consumption: Max. 3.5 W
Weather Proof: IP67
IR Range: Up to 20m
Communication: Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimension: 91mm×82.6mm×68.3mm (3.58″×3.25″×2.69″)
Weight: Approx. 350g (0.77lb)



Download Center


Datasheet

Quick Start Guide

User Manual
