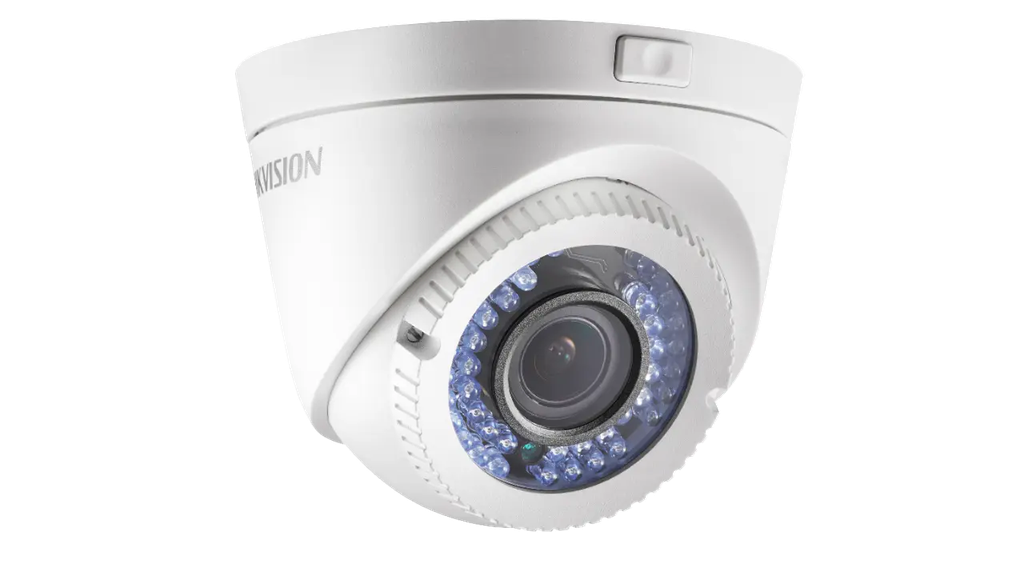

Hikvision DS-2CE56D0T-VFIR3E Turret Camera

http://www.techcore.com.ph/web/image/product.template/179/image_1920?unique=59336c0

• 2MP PoC Manual Varifocal Turret Camera
• 2 MP varifocal PoC turret camera
• 2.8 mm to 12 mm varifocal lens
• Up to 40 m IR distance for bright night imaging
• Water and dust resistant (IP67)
• Transmits both HD video and power over the same coaxial cable

This combination does not exist.

Contact Us
Analog HD Camera Turret Value Series Hikvision



Product Specification


Image Sensor 2 MP progressive scan CMOS
Max. Resolution 1920 (H) × 1080 (V)
Min. Illumination 0.01 Lux@(F1.4, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night IR Cut Filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal System PAL/NTSC
Lens Type Varifocal lens, manual adjustment, 2.8 mm to 12 mm
Focal Length & FOV Horizontal FOV 105.2° to 32.8°
Lens Mount Φ14
Supplement Light Type IR
Supplement Light Range Up to 40 m
Image Settings AGC;Brightness;Sharpness;Mirror
Frame Rate PAL: 1080p@25fps; NTSC: 1080p@30fps
Day/Night Mode Auto/Color/BW (Black and White)
Image Enhancement BLC;DWDR
Noise Reduction 2D DNR
Video Output 1 HD analog output
Power 12 VDC ±15%/PoC.at, max. 6.5 W
Material Main body: Metal, Enclosure: Plastic
Dimension Ø 130.5 mm × 102.4 mm (Ø 5.14" × 4.03")
Weight Approx. 710 g (1.57 lb.)
Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
Language English
Approval Protection: IP67



Download Center


Datasheet

Quick Start Guide

User Manual
