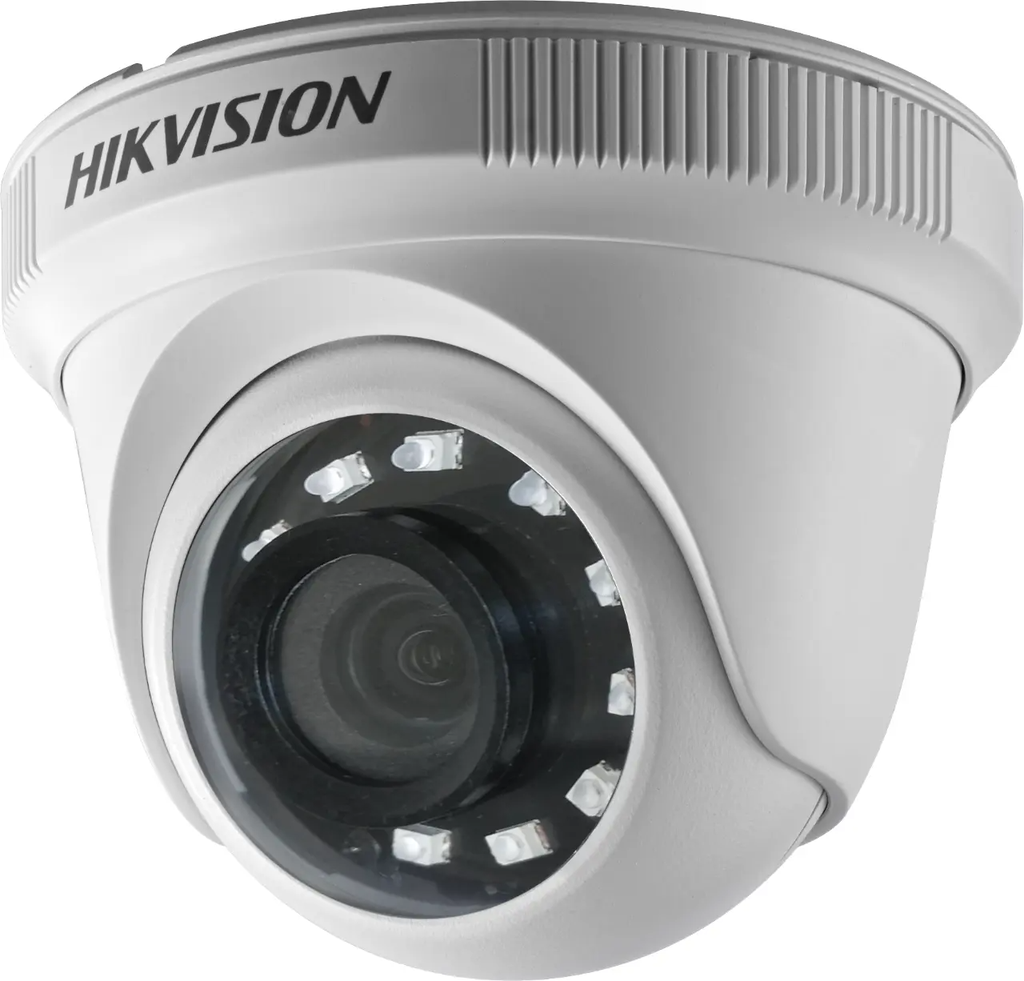

Hikvision DS-2CE56D0T-IR(C) Turret Camera

Hikvision DS-2CE56D0T-IR(C) Turret Camera

• 2 MP Fixed Turret Camera
• 2 MP turret camera
• Smart IR: up to 25 m IR distance
• Water and dust resistant (IP67)

This combination does not exist.

Analog HD Camera Turret Value Series Hikvision

Product Specification

Image Sensor	2 MP CMOS
Max. Resolution	1920 (H) × 1080 (V)
Min. Illumination	0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night	IR Cut Filter
Angle Adjustment	Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal System	PAL/NTSC
Lens Type	2.8 mm, 3.6 mm and 6 mm fixed focal lens
Focal Length & FOV	2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°; 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°; 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
Lens Mount	M12
Supplement Light Type	IR
Supplement Light Range	IR Distance: Up to 25 m
Image Parameters Switch	STD/HIGH-SAT
Image Settings	Brightness;Sharpness;AGC;Smart IR
Frame Rate	TVI: 1080P@30fps, 1080P@25fps
Day/Night Mode	Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	BLC;HLC;Global
Noise Reduction	2D DNR
White Balance	Auto/Manual
Video Output	1 HD analog output
Power	12 VDC ± 25%, max. 3 W
Material	Main body: Metal, Enclosure: Plastic
Dimension	Φ 89.9 mm × 70.1 mm (Φ 3.54" × 2.76")
Weight	Approx. 173 g (0.38 lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Communication	HIKVISION-C
Language	English
Approval	Protection: IP67
