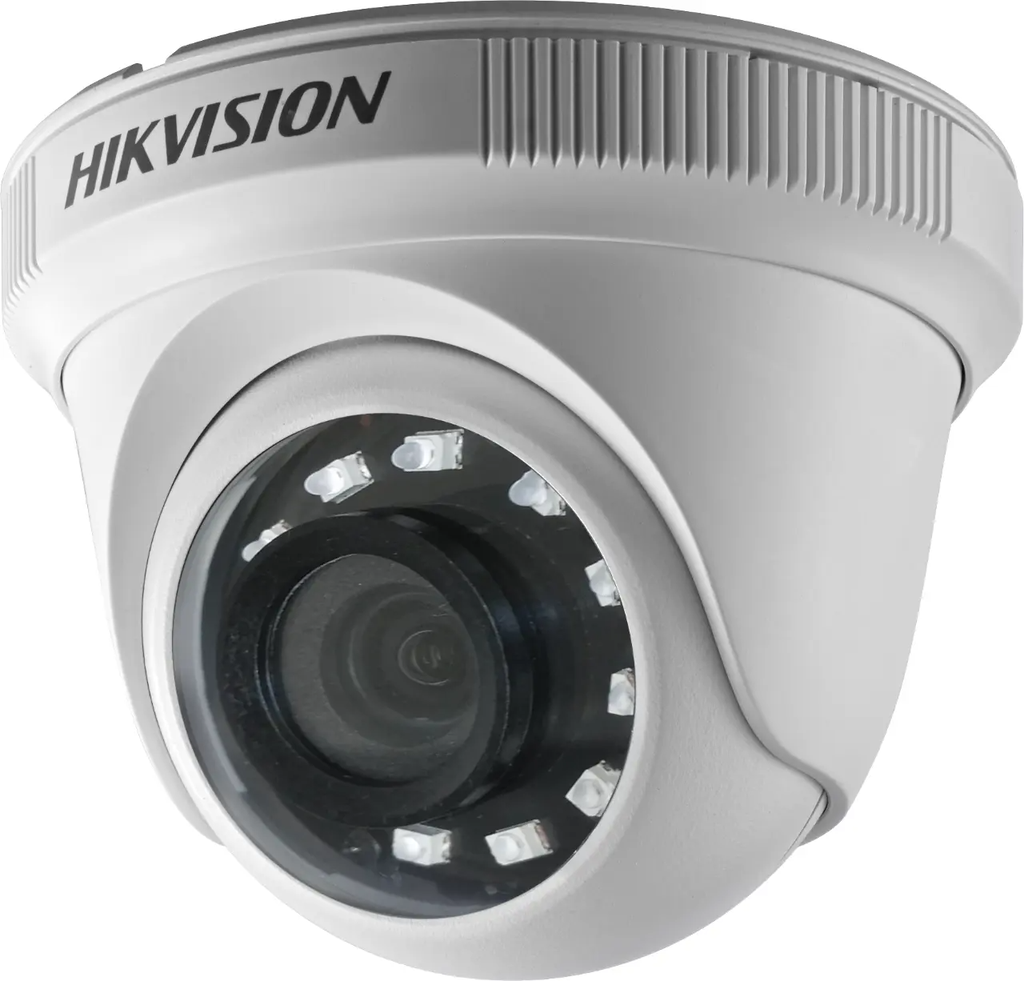

Hikvision DS-2CE56D0T-IR(C) Turret Camera

  1. All products
  2. TVI-HD Cameras
  3. Hikvision DS-2CE56D0T-IR(C) Turret Camera
  4. TVI-HD Cameras
Pricelist: - Pricelist
Pricelist: - Pricelist
Hikvision DS-2CE56D0T-IR(C) Turret Camera

Hikvision DS-2CE56D0T-IR(C) Turret Camera

• 2 MP Fixed Turret Camera
• 2 MP turret camera
• Smart IR: up to 25 m IR distance
• Water and dust resistant (IP67)

Analog HD Camera Turret Value Series Hikvision
0.00 ₱ 0.00 ₱


Contact Us
Your Dynamic Snippet will be displayed here... This message is displayed because youy did not provide both a filter and a template to use.
  • Details
  • Download
  • Models

Product Specification


Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Min. Illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night IR Cut Filter
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal System PAL/NTSC
Lens Type 2.8 mm, 3.6 mm and 6 mm fixed focal lens
Focal Length & FOV 2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°; 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°; 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
Lens Mount M12
Supplement Light Type IR
Supplement Light Range IR Distance: Up to 25 m
Image Parameters Switch STD/HIGH-SAT
Image Settings Brightness;Sharpness;AGC;Smart IR
Frame Rate TVI: 1080P@30fps, 1080P@25fps
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC;HLC;Global
Noise Reduction 2D DNR
White Balance Auto/Manual
Video Output 1 HD analog output
Power 12 VDC ± 25%, max. 3 W
Material Main body: Metal, Enclosure: Plastic
Dimension Φ 89.9 mm × 70.1 mm (Φ 3.54" × 2.76")
Weight Approx. 173 g (0.38 lb.)
Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Communication HIKVISION-C
Language English
Approval Protection: IP67



Download Center


Datasheet

Quick Start Guide

User Manual
