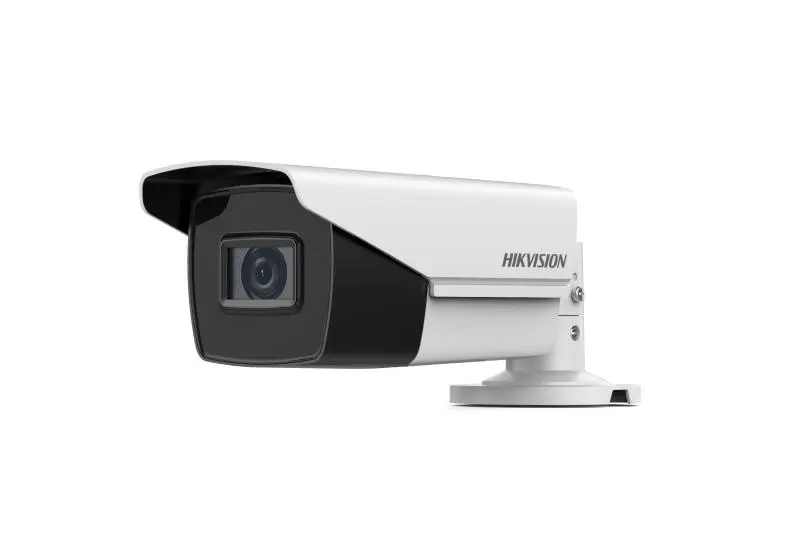

Hikvision DS-2CE19D3T-AIT3ZF Bullet Camera

-
  1. All Products
  2. TVI-HD Cameras
  3. Hikvision DS-2CE19D3T-AIT3ZF Bullet Camera

Hikvision DS-2CE19D3T-AIT3ZF Bullet Camera

http://www.techcore.com.ph/web/image/product.template/175/image_1920?unique=4f3c7a6

• 2 MP Ultra Low Light Motorized Varifocal Bullet Camera
• 2 MP bullet camera
• Strong night performance, capturing images in ultra-low light down to 0.005 lux
• Clear imaging even against strong back lighting due to 120 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• Lens focuses automatically when zooming in or out
• EXIR 2.0: advanced infrared technology with 70 m IR distance
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

This combination does not exist.

Contact Us
Analog HD Camera Bullet Value Series Hikvision



Product Specification


Image Sensor 2.0 megapixel progressive scan CMOS
Max. Resolution 1920 (H) ×1080 (V)
Min. Illumination 0.005 Lux@(F1.6, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Signal System PAL/NTSC
Lens Type 2.7 mm to 13.5 mm
Focal Length & FOV 102° to 31°
Lens Mount Φ 14
Image Parameters Switch STD/HIGH-SAT
Image Settings Brightness, Sharpness, 3D DNR, Mirror, Smart IR
Frame Rate PAL: 1080p@25fps; NTSC: 1080p@30fps
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) ≥ 120 dB
Image Enhancement Yes
White Balance ATW/MWB
AGC High/Medium/Low
Video Output TVI/AHD/CVI/CVBS;1 HD analog output
Material Front cover: Metal; Main body: Plastic; Bracket: Metal
Dimension 84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10")
Weight Approx. 648 g (1.43 lb.); -A: Approx. 695 g (1.53 lb.)
Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Language English
Power Supply 12 VDC ±25%; -A: 24 VAC ±15%, 12 VDC ±20% *You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 7.7 W; -A: Max. 9.7 W
IR Range Up to 70 m
Approval Protection: IP67
